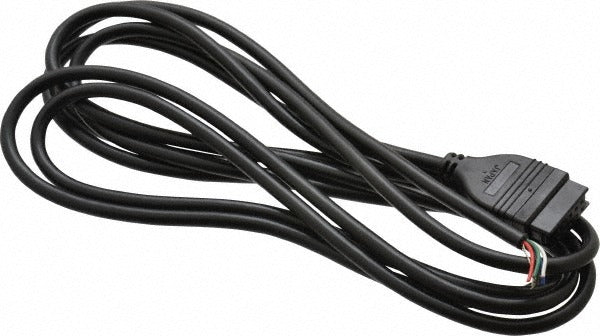

Mitutoyo 965516 Go Ng Data Collection Cable

Product Description

The MITUTOYO 965516 is a remote data collection GO NG cable designed to transmit pass/fail measurement signals from compatible Mitutoyo instruments to a data collection system. It functions as a signal interface accessory, carrying GO and NG output data between the measuring instrument and a downstream processor or quality-control system. Licensed metrology technicians and quality assurance professionals in manufacturing environments typically install and configure this cable. The 965516 weighs 0.45 pounds and ships as a single-unit package.

This cable is used in precision measurement setups where automated GO NG sorting or data logging is required. It connects supported surface finish and data processing instruments, enabling real-time pass/fail decisions in production or inspection environments. The cable is suited for both shop-floor metrology stations and lab-based inspection setups where Mitutoyo Digimatic-compatible instruments are in use.

Key Features

• Transmits GO and NG pass/fail signals for automated quality data collection
• Compatible with the DP-1VR Series 264 Digimatic Mini-Processor
• Compatible with Surftest SJ-301 and SJ-210 surface roughness testers
• Single-unit package quantity for direct replacement or spare use
• OEM Mitutoyo accessory ensuring proper signal integrity with supported instruments

Compatibility

Designed for use with the DP-1VR Series 264 Digimatic Mini-Processor and the Surftest SJ-301 and SJ-210 surface roughness testers.

Installation Notes

Power down all connected instruments before disconnecting or connecting this cable. Ensure connectors are fully seated and latched before resuming instrument operation. Installation is typically performed by metrology technicians or quality assurance personnel familiar with Mitutoyo Digimatic interface connections. Consult the instrument operator manual for connector pinout and data collection configuration guidance.
