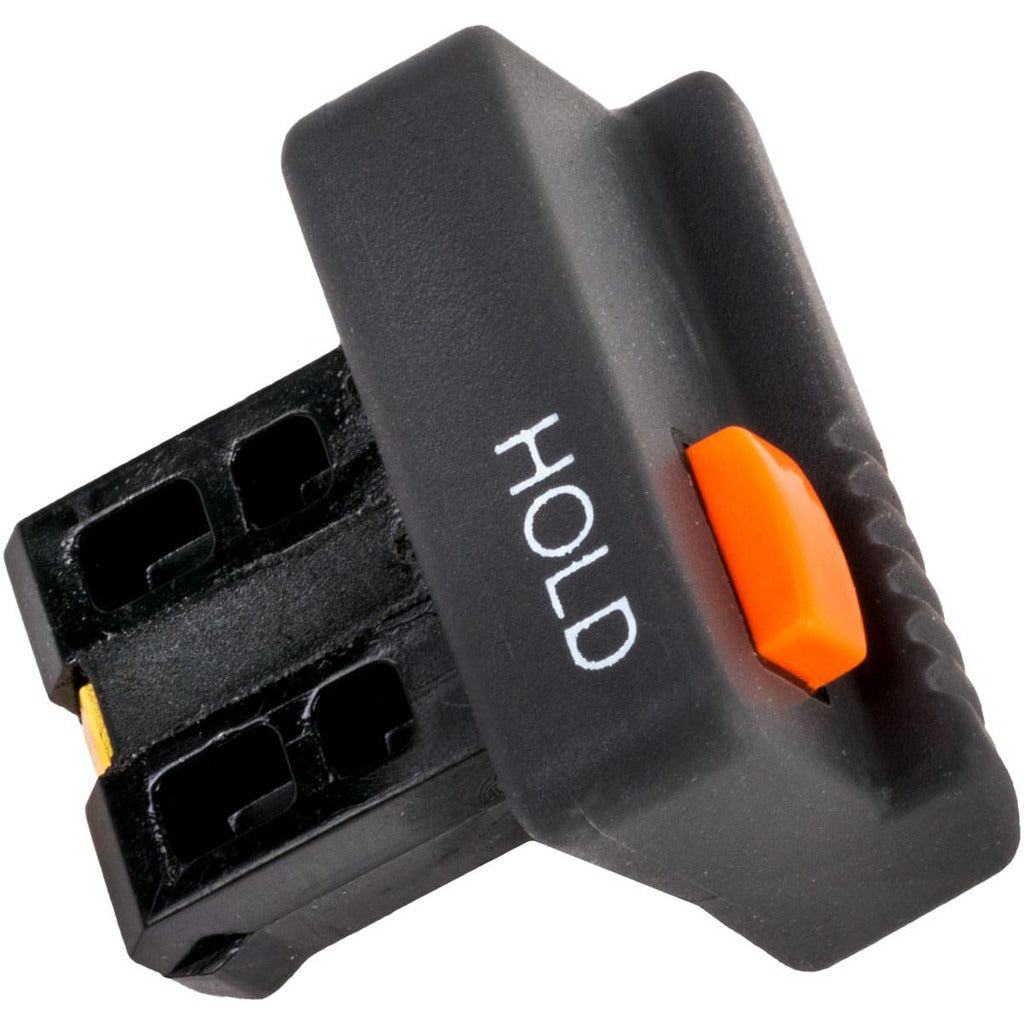

Mitutoyo 959143 Digimatic Data Hold Unit

Product Description

The MITUTOYO 959143 is a Digimatic Data Hold Unit designed to capture and freeze measurement readings from compatible Digimatic scale units. It interfaces directly with Mitutoyo Digimatic-output instruments, allowing the user to lock a displayed value for recording without disturbing the measurement setup. This unit is a standard accessory used in dimensional metrology workflows where consistent, hands-free data capture is required. Technicians and quality control personnel in manufacturing, machining, and calibration environments rely on data hold accessories like this to reduce transcription errors and streamline measurement documentation.

This data hold unit is intended for use in precision measurement applications where scale unit readings must be held and logged accurately. It is particularly suited for bench-top and in-process inspection tasks. The unit connects to Mitutoyo Digimatic-output scales and can be integrated into a measurement station setup. Quality technicians, machinists, and metrology professionals typically incorporate this accessory when working with high-frequency or repetitive measurement tasks that require captured readings.

Key Features

• Freezes and holds Digimatic measurement output for easy reading and recording
• Compatible with 572 Series Absolute Digimatic Scale Units
• Compact and lightweight at 0.02 pounds for easy bench-top placement
• Supports accurate dimensional data capture in production and inspection environments
• Sold individually as a single-unit package

Compatibility

Designed for use with Mitutoyo 572 Series Absolute Digimatic Scale Units.

Installation Notes

This unit is installed by metrology or quality control technicians as part of a Digimatic measurement station. Ensure the scale unit is powered down or in a stable state before connecting or disconnecting the data hold unit. Follow Mitutoyo interface connection guidelines and handle the Digimatic connector carefully to avoid pin damage. No special tools are required for connection, but verify compatibility with the specific scale unit model before use.
