Mitutoyo 950-206 Drill Gage 1/16 to 1/2 Inch 29 Holes

Product Description

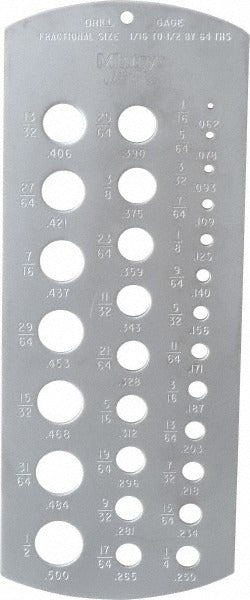

The MITUTOYO 950-206 is an inch-system drill gage used to verify hole sizes ranging from 1/16 inch to 1/2 inch. It contains 29 precision-machined holes that allow technicians and tradespeople to quickly identify drill bit sizes and confirm drilled hole diameters on the job. The gage body measures 6-3/8 inches long and 2-1/2 inches wide, making it compact enough for a tool pouch or bench drawer. This type of tool is standard in any shop where accurate hole sizing matters, including HVAC, plumbing, electrical, and general fabrication environments.

The 950-206 is suited for use in both shop and field settings where inch-standard drill bits are in use. It covers the most common fractional drill sizes encountered in trade work, from small pilot holes at 1/16 inch up through 1/2 inch diameter. Machinists, electricians, pipefitters, and sheet metal workers will find this gage useful for confirming bit size before use or verifying a drilled hole before tapping or fitting a fastener.

Key Features

• 29 precision holes covering 1/16 inch through 1/2 inch in fractional increments
• Inch measurement system for compatibility with standard fractional drill bits
• Compact body at 6-3/8 inches long and 2-1/2 inches wide for easy storage and portability
• Allows fast visual and physical verification of drill bit diameter or drilled hole size
• Suitable for bench, shop, or field use across multiple trades

Compatibility

Designed for use with inch-system drill bits across standard fractional sizes from 1/16 inch to 1/2 inch, as used in residential and commercial trade applications.

Installation Notes

No installation is required for this gage. Keep the gage clean and free of burrs or debris to ensure accurate hole-size readings. Store in a protective case or pouch to prevent damage to the precision-machined holes. Inspect the gage periodically for wear, as damaged hole edges can affect measurement accuracy.
