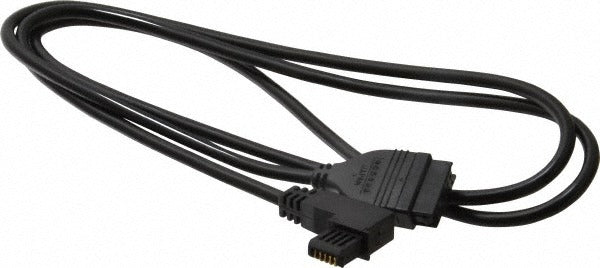

Mitutoyo 905693 Spc Data Cable 40 Inches Digimatic

Product Description

The MITUTOYO 905693 is a 40-inch SPC (Statistical Process Control) data cable designed to connect Digimatic-output measurement instruments to data collection devices and mini-processors. At 40 inches (1,016 mm) in length, it provides enough reach for benchtop and inline measurement setups without excess slack. The cable transmits digital measurement data in real time, supporting SPC workflows in quality control, production, and calibration environments. Metrology technicians, quality engineers, and precision measurement specialists are the primary users of this accessory.

This cable is intended for use in dimensional metrology applications where Digimatic-equipped instruments feed measurement data to a processor or data logger. Typical installations include bench-mounted inspection stations, coordinate measurement support setups, and production-floor SPC data collection systems. It is sold individually as a single-unit package.

Key Features

• 40-inch (1,016 mm) cable length suits standard benchtop measurement reach
• Designed for SPC data transfer from Digimatic-output instruments
• Compatible with Absolute Digimatic Scale Units, DP-1VR Series 264 Digimatic Mini-Processors, Durometers, and Hardmatic HH-300 Calipers
• Single-unit package with a minimum order quantity of one

Compatibility

Compatible with Absolute Digimatic Scale Units, Digimatic Mini-Processors, DP-1VR Series 264 Digimatic Mini-Processors, Durometers, and Hardmatic HH-300 Calipers per manufacturer specifications.

Installation Notes

Installation is performed by metrology technicians or quality control personnel familiar with Digimatic interface connections. Power down or disable the data collection device before connecting or disconnecting the cable to avoid signal errors or port damage. Ensure the connector is fully seated at both ends before initiating data transmission. Do not force the connector or bend the cable at sharp angles near the termination points.
