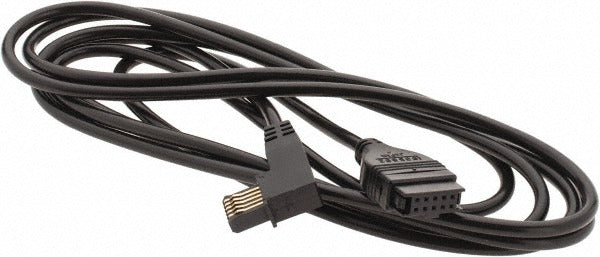

Mitutoyo 905692 L-shaped Spc Cable 80 Inches Height Gage

Product Description

The MITUTOYO 905692 is an 80-inch L-shaped SPC (Statistical Process Control) cable designed for use with Digimatic height gages. The L-shaped connector configuration allows for a clean cable exit in space-constrained setups, reducing strain on the port and keeping the cable path organized during measurements. At 80 inches in length, it provides enough reach for bench or floor-level measurement stations where the gage and data collection device are separated by a significant distance. This cable transmits measurement data from the height gage to a compatible SPC data collection device, computer interface, or printer. Metrology technicians and quality control professionals are the primary installers and users of this accessory.

This cable is specifically designed for use with Mitutoyo Digimatic height gages, including Series 192-67X, Series 192-6XX, and Series 572-2XX models. It is a direct accessory intended for metrology and quality assurance environments, including manufacturing inspection stations, calibration labs, and production floor measurement setups where real-time SPC data output is required. The 80-inch cable length suits stations where the gage and the receiving device are not immediately adjacent.

Key Features

• L-shaped connector reduces cable strain and fits tight connector clearances on Digimatic height gages
• 80-inch cable length accommodates extended reach between gage and SPC data collection equipment
• Transmits real-time measurement data for SPC and quality documentation workflows
• Compatible with multiple Mitutoyo Digimatic height gage series
• Single-unit packaging with a minimum order quantity of one

Compatibility

Designed for use with Mitutoyo Digimatic Height Gages Series 192-67X, Digimatic Height Gages Series 192-6XX, and Digimatic Height Gages Series 572-2XX.

Installation Notes

Connection and disconnection of SPC cables should be performed with the gage powered off or in a stable, non-measuring state to avoid data errors or port damage. Align the L-shaped connector carefully before seating to prevent bent pins. Route the cable away from sharp edges and moving machine components to preserve cable integrity over time. No special tools are required for installation.
