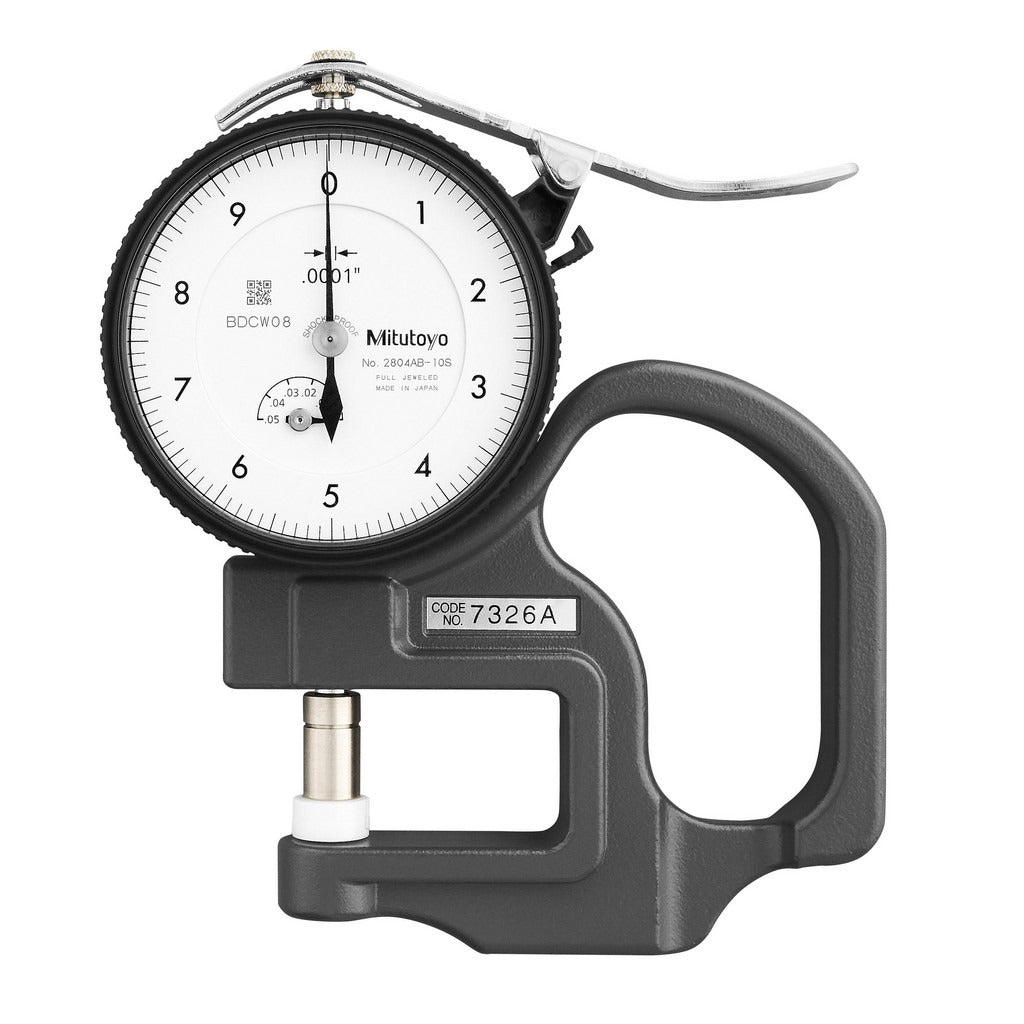

Mitutoyo 7326A Dial Thickness Gage 0 to 0.05 in

Product Description

The MITUTOYO 7326A is a mechanical dial thickness gage designed for precise measurement of material thickness in industrial and metrology applications. It measures from 0 to 0.05 inches with a graduation of 0.00005 inches and an accuracy of 0.0002 inches, making it well suited for thin-material inspection work where tight tolerances matter. The 2-inch dial face provides clear readability, and the ceramic anvil face resists wear over repeated use. A corrosion-resistant, scratch-resistant coating and glare-free crystal keep the instrument serviceable in shop environments. The unit weighs 1 pound and is handled by quality control technicians, machinists, and metrology professionals.

The 7326A is used in manufacturing, fabrication, and inspection settings where thickness verification of thin materials such as shims, gaskets, sheet stock, or film is required. The 1.1811-inch throat depth accommodates a practical range of part geometries. The flat anvil tip and 12 mm anvil face diameter provide stable, repeatable contact on flat workpiece surfaces. A measuring force of 1.4 N minimizes deflection on delicate or compliant materials. This gage is appropriate for both production floor checks and bench-top inspection stations.

Key Features

• Measurement range of 0 to 0.05 inches with 0.00005-inch graduation for fine resolution
• Accuracy rated at 0.0002 inches for reliable inspection results
• Ceramic anvil face material resists wear and corrosion during repeated measurements
• 1.4 N measuring force reduces risk of deflection on thin or flexible materials
• Glare-free crystal and 2-inch dial diameter improve readability in varied lighting conditions
• Scratch-resistant and corrosion-resistant coating extends instrument service life

Compatibility

Designed for use as a bench-top or handheld thickness measurement instrument suitable for thin flat materials including shims, gaskets, sheet metal, film, and similar workpieces requiring precise thickness verification.

Installation Notes

This instrument requires no installation in the traditional sense but should be handled and stored per standard metrology practices. Zero the gage on a calibrated reference surface before use and verify calibration periodically against certified gauge blocks. Keep the anvil faces clean and free of debris to maintain measurement accuracy. Do not apply excessive force to the spindle, as this can affect the measuring force specification and introduce error.
