Mitutoyo 7002-10 Indicator Transfer Stand Rectangular Base

Product Description

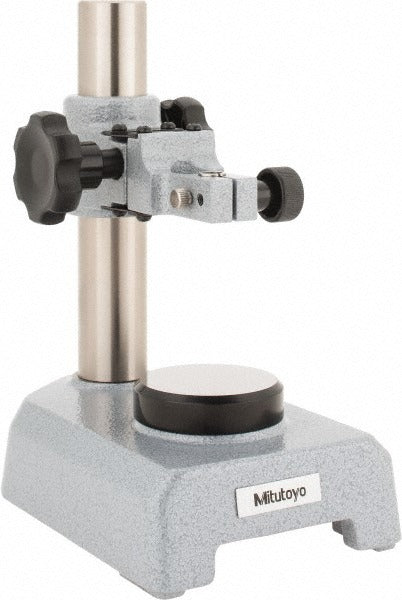

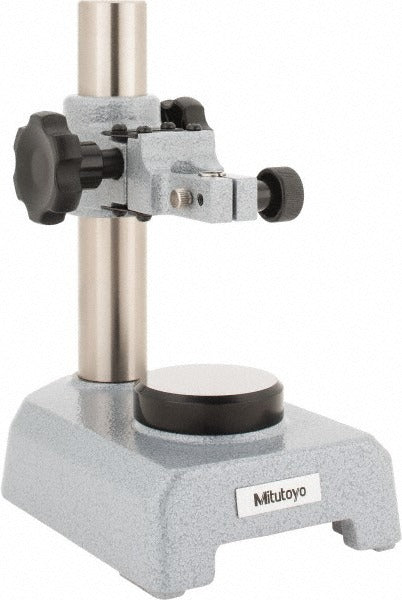

The MITUTOYO 7002-10 is a rectangular-base indicator transfer stand designed for precise dial indicator positioning in metrology and inspection applications. Standing 205mm (approximately 8.07 inches) overall height, it provides a stable platform for transferring and holding indicators during measurement tasks. The heavy rectangular base measures 6-5/8 inches in length by 4-21/64 inches in width by 1-3/4 inches in height, delivering a low center of gravity and resistance to tipping on flat surface plates or workbenches. A fine adjustment mechanism allows accurate one-touch control of indicator positioning. The stand ships with a holder included. At 9 pounds, the base mass contributes to measurement stability. Installation and use are typical for quality control technicians and precision inspection professionals.

This indicator transfer stand is suited for dimensional inspection work in manufacturing, machine shops, and quality control labs. It is used with a separately sourced dial indicator mounted via the included holder. The flat anvil style and fine adjustment capability make it appropriate for applications requiring repeatable, controlled indicator contact with workpiece surfaces. The rectangular base design is well matched to granite surface plates and steel inspection tables found in both production and tool-room environments.

Key Features

• Fine adjustment mechanism for accurate one-touch indicator positioning
• Rectangular base with 6-5/8 inch length and 4-21/64 inch width for broad, stable footprint
• 205mm (8.07 inches) overall height accommodates a range of workpiece and indicator setups
• Flat anvil included with 2-9/32 inch (2.2813 inch decimal) diameter
• Holder included — dial indicator sourced separately
• 9-pound base weight supports steady, vibration-resistant measurements

Compatibility

Designed as an OEM-style indicator transfer stand compatible with standard dial indicators mounted via a conventional holder — specific indicator compatibility depends on the indicator stem diameter and the holder configuration used.

Installation Notes

Placement and setup of indicator transfer stands is performed by quality control technicians and precision measurement professionals. Ensure the mounting surface is clean, flat, and free of chips or debris before placing the stand. Secure the dial indicator in the included holder and tighten all locking mechanisms before taking measurements to prevent indicator drift. Do not exceed the load capacity of the anvil or apply lateral force to the fine adjustment mechanism during setup.
