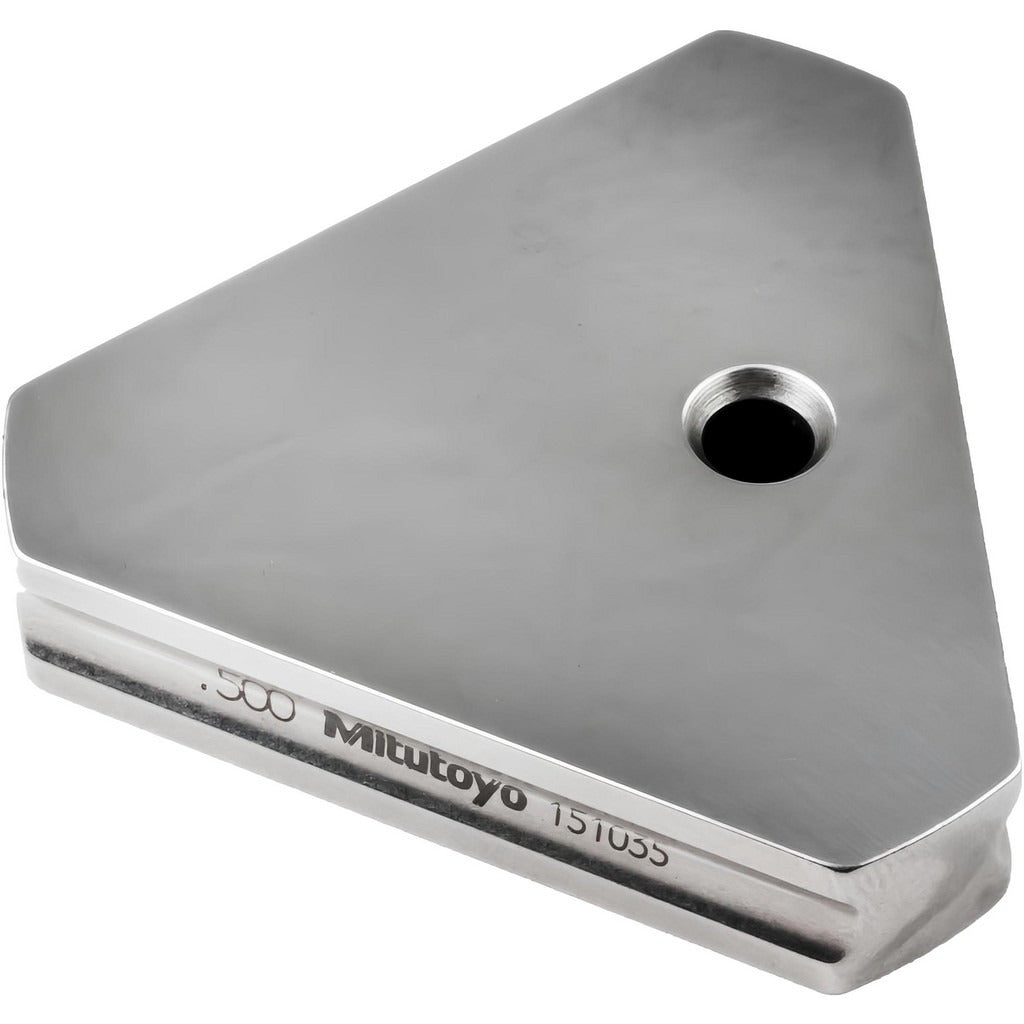

Mitutoyo 619055 Gage Block Holder Steel

Product Description

The MITUTOYO 619055 is a steel gage block holder designed to secure and support gage blocks during measurement setup, inspection, and calibration work. It provides a stable holding platform with a 0.50 inch holding capacity, keeping blocks properly positioned for accurate surface plate or bench-top metrology tasks. Built from steel for durability and dimensional stability, this accessory is a standard tool in quality control environments, metrology labs, and precision machining shops. Dimensional inspection technicians and metrologists install and use this holder as part of routine gage block setups.

The 619055 is suited for use with standard gage block sets in both shop-floor and lab inspection environments. Its 6 inch width and 3.50 inch length provide a stable base footprint appropriate for typical gage block configurations. The 2 inch overall height positions blocks at a practical working elevation for measurement tasks. This holder is appropriate for quality inspection stations in manufacturing, aerospace, and toolroom settings where consistent gage block positioning is required.

Key Features

• Steel construction provides dimensional stability and long service life in precision environments
• 0.50 inch holding capacity accommodates standard gage block thicknesses
• 6 inch overall width and 3.50 inch length deliver a broad, stable base footprint
• 2 inch overall height positions blocks at an accessible working elevation
• Single-piece unit requires no assembly and is ready for immediate use

Compatibility

Designed for use with standard gage blocks as an accessory holder for precision measurement and inspection setups.

Installation Notes

Setup and positioning of this holder is typically performed by metrology technicians or quality inspection personnel. Ensure the mounting surface or surface plate is clean and free of burrs or debris before placing the holder to avoid measurement errors. Handle gage blocks and accessories with clean, dry hands or lint-free gloves to prevent corrosion. Follow the gage block manufacturer guidelines and applicable calibration procedures when assembling gage block stacks with this holder.
