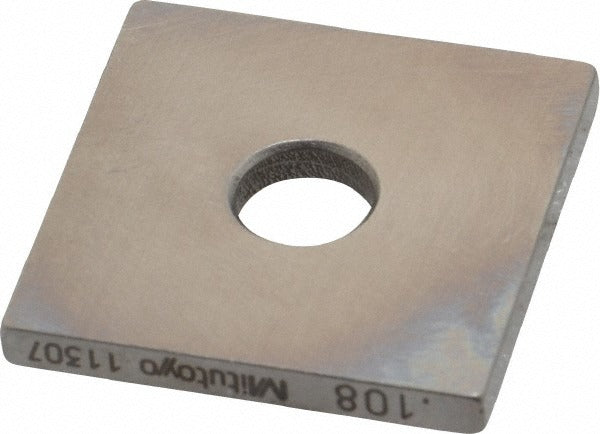

Mitutoyo 614148-531 Square Steel Gage Block 0.108 in

Product Description

The MITUTOYO 614148-531 is a square steel gage block with a nominal length of 0.108 inches, manufactured to ASME Grade 0 accuracy standards. Gage blocks are precision reference standards used to calibrate measuring instruments, verify dimensional tolerances, and establish precise length references on the shop floor or in the calibration lab. Grade 0 represents a high level of dimensional accuracy, making this block suitable for calibration work and inspection tasks where tight tolerances are required. Each block ships with a Certificate of Inspection. It is constructed from steel for durability and dimensional stability under typical metrology conditions.

This gage block is used in precision measurement applications across manufacturing, machining, and quality control environments. Metrology technicians, toolmakers, and quality assurance personnel rely on individual gage blocks like this one to build stacks, set comparators, and calibrate micrometers and calipers. The 0.108-inch size is a standard increment used in wringing combinations to achieve a wide range of target dimensions from a minimal set of blocks.

Key Features

• Grade 0 accuracy per ASME standards for high-precision calibration and inspection use
• Steel construction for hardness, wear resistance, and long-term dimensional stability
• Nominal length of 0.108 inches for use as a standalone reference or in wrung stacks
• Includes Certificate of Inspection for traceability documentation
• Square geometry for consistent wringing and stable stacking

Compatibility

Designed as an individual gage block for use in standard wringing sets and compatible with ASME B89.1.9 gage block systems. No specific instrument or system compatibility was stated by the manufacturer for this SKU.

Installation Notes

Gage blocks are handled and used by metrology technicians and quality control personnel in calibration lab or inspection environments. Clean block surfaces thoroughly before wringing to prevent debris from affecting accuracy or damaging lapped faces. Store blocks in their protective case when not in use to prevent corrosion and surface damage. Apply a light coat of appropriate instrument oil or corrosion inhibitor after use if long-term storage is anticipated.
