Mitutoyo 614147-531 Square Steel Gage Block 0.107 in

Product Description

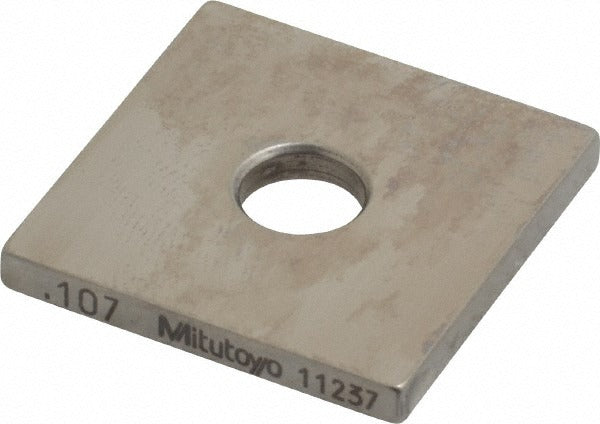

The MITUTOYO 614147-531 is a square steel gage block measuring 0.107 inches in overall length, manufactured to Grade 0 accuracy per ASME standards. Gage blocks serve as precision reference standards used to calibrate measuring instruments, set comparators, and verify dimensional tolerances in metrology and machining environments. Each block ships with a Certificate of Inspection confirming it meets Grade 0 accuracy requirements. Grade 0 represents a high level of dimensional accuracy, making this block appropriate for inspection labs, toolrooms, and quality control stations where traceability and close tolerances are required.

This gage block is suited for use in manufacturing facilities, inspection departments, and calibration labs. It functions as a dimensional reference standard for setting micrometers, height gages, snap gages, and surface plate setups. The 0.107-inch size fits into standard gage block sets and is commonly used as an individual replacement or supplemental block for building up precise stacked dimensions. It is appropriate for both production floor and lab environments where ASME-compliant reference standards are required.

Key Features

• Grade 0 accuracy per ASME standards for high-precision dimensional reference work
• Steel construction provides durability and resistance to wear under repeated use
• 0.107-inch nominal size suitable for stack-up measurements and instrument calibration
• Includes Certificate of Inspection for traceability documentation
• Square block geometry compatible with standard gage block accessories and holders

Compatibility

Designed as an individual precision reference block compatible with standard gage block sets and accessories meeting ASME dimensional standards for square-style blocks.

Installation Notes

Gage blocks are handled and set up by metrology technicians, quality control inspectors, and toolroom machinists. Before use, clean all mating surfaces thoroughly to remove oils, debris, and burrs that could affect accuracy or damage the block faces. Wringing blocks together requires clean, flat surfaces and careful technique to avoid scratching. Store blocks in their case with appropriate protective coating applied when not in use to prevent corrosion.
