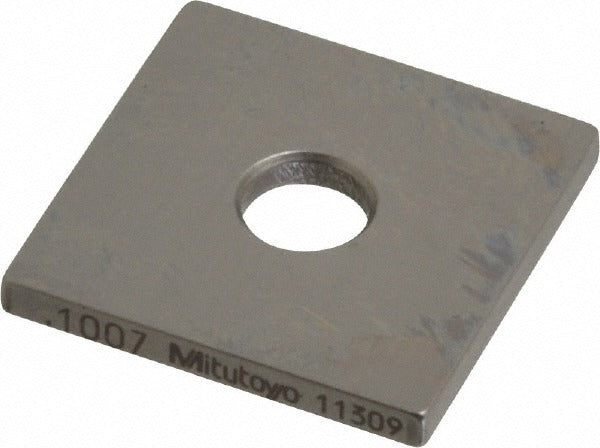

Mitutoyo 614127-531 Square Steel Gage Block 0.1007 in

Product Description

The MITUTOYO 614127-531 is a square steel gage block measuring 0.1007 inches in overall length, manufactured to Accuracy Grade 0 per ASME standards. Gage blocks are precision reference standards used to calibrate measurement instruments, verify part dimensions, and establish traceable length references in metrology and quality control environments. Grade 0 represents a high level of dimensional accuracy, making this block suitable for demanding calibration and inspection work. A Certificate of Inspection is included, providing documented traceability for quality system requirements. The block weighs 1 pound and is constructed from steel for dimensional stability and wear resistance.

This gage block is used in metrology labs, machine shops, manufacturing facilities, and inspection departments where precise dimensional reference is required. It is suited for applications involving surface plate work, comparator setups, and instrument calibration. Machinists, quality technicians, and metrology professionals typically work with blocks of this type as part of a calibrated set or as a standalone reference standard.

Key Features

• Grade 0 accuracy per ASME standards for high-precision dimensional reference
• Overall length of 0.1007 inches for traceable calibration and gauging work
• Steel construction provides durability, stability, and long service life
• Includes Certificate of Inspection for documented measurement traceability
• Square form factor compatible with standard gage block accessories and holders

Compatibility

Designed as an OEM-style precision reference standard for use in metrology, inspection, and calibration applications requiring ASME-compliant Grade 0 gage blocks.

Installation Notes

Gage blocks are handled and stored by quality technicians and metrologists following established metrology lab procedures. Blocks should be kept clean and lightly oiled when stored to prevent corrosion. When wringing blocks together or placing them on a surface plate, ensure all surfaces are free of debris and contaminants. Follow your facility's calibration control procedures and applicable ASME B89 standards for handling and recalibration intervals.
