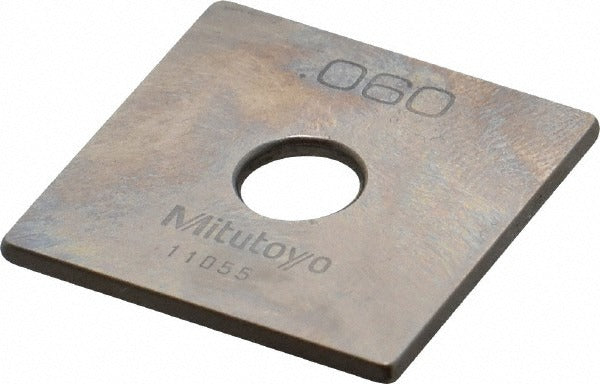

Mitutoyo 614106-531 Square Steel Gage Block 0.06 in Grade 0

Product Description

The MITUTOYO 614106-531 is a square steel gage block measuring 0.06 inches, manufactured to Grade 0 accuracy standards per ASME specifications. Gage blocks are precision length reference standards used to calibrate measuring instruments, set up machine tools, and verify dimensional tolerances in manufacturing and quality control environments. This block ships with a Certificate of Inspection, confirming that the piece has been measured and documented against its stated accuracy grade. Grade 0 represents a high-accuracy classification suitable for calibration lab and inspection use. The steel construction provides durability and resistance to wear under repeated contact with measuring surfaces.

This gage block is used in metrology labs, machine shops, and quality inspection departments. Typical applications include setting comparators, calibrating micrometers and calipers, and establishing reference dimensions for precision machining setups. It is appropriate for both shop-floor inspection and controlled laboratory environments where dimensional traceability is required. Machinists, metrologists, and quality control technicians are the primary users of this type of reference standard.

Key Features

• Grade 0 accuracy per ASME standards — suitable for calibration and high-precision inspection work
• Square steel construction provides long service life and wringing compatibility with other gage blocks
• 0.06-inch nominal size for use in block sets or as a standalone reference standard
• Includes Certificate of Inspection for traceability documentation
• Single-piece packaging supports individual replacement or supplemental addition to existing sets

Compatibility

Designed as an OEM-style reference standard compatible with standard gage block sets and accessories conforming to ASME B89.1.9 square gage block specifications.

Installation Notes

Gage blocks should be handled by a qualified metrologist or trained quality technician. Store blocks in their protective case and allow temperature stabilization to 68 degrees F (20 degrees C) before use to ensure measurement accuracy. Clean wringing surfaces with an appropriate gage block cleaner before use and avoid contact with abrasive materials. Do not wring blocks with excessive force, and inspect surfaces for burrs or corrosion before each use.
