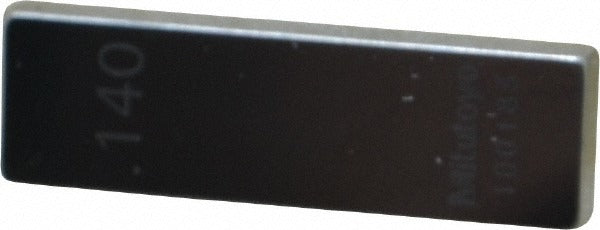

Mitutoyo 611180-531 Steel Gage Block 0.14 in Grade 0

Product Description

The MITUTOYO 611180-531 is a rectangular steel gage block measuring 0.14 inches, manufactured to Grade 0 accuracy standards. Gage blocks serve as precision length references used to calibrate measuring instruments, set comparators, and verify dimensional tolerances in metrology and quality control applications. This block meets ASME standards and ships with a Certificate of Inspection, confirming dimensional conformance at the Grade 0 tolerance level. Grade 0 blocks represent a high level of accuracy suitable for standards-room and inspection use. The steel construction provides durability and wear resistance under repeated contact during calibration work.

This gage block is suited for use in tool rooms, metrology labs, and inspection departments where traceable length references are required. Typical users include quality control technicians, metrologists, and calibration specialists. The 0.14-inch nominal size makes it appropriate for applications requiring a precise reference at that dimension. It is packaged individually and can be used as a standalone reference block or as part of a custom gage block set for wringing.

Key Features

• Grade 0 accuracy per ASME standards for high-precision reference use
• Steel construction for durability and resistance to wear during repeated wringing
• 0.14-inch nominal length for specific dimensional reference applications
• Includes Certificate of Inspection confirming dimensional conformance
• Rectangular form factor compatible with standard gage block accessories

Compatibility

Designed as a precision length reference block for use with standard gage block accessories, comparator stands, and surface plates in tool room and metrology lab environments.

Installation Notes

Gage blocks are handled and stored by metrology and calibration personnel following established laboratory procedures. Blocks should be wrung together on a clean, flat surface free of debris or burrs to ensure accurate stacking. Store blocks in their protective case when not in use to prevent corrosion and surface damage. Consult ASME B89.1.9 for guidance on care, handling, and calibration intervals applicable to precision gage blocks.
