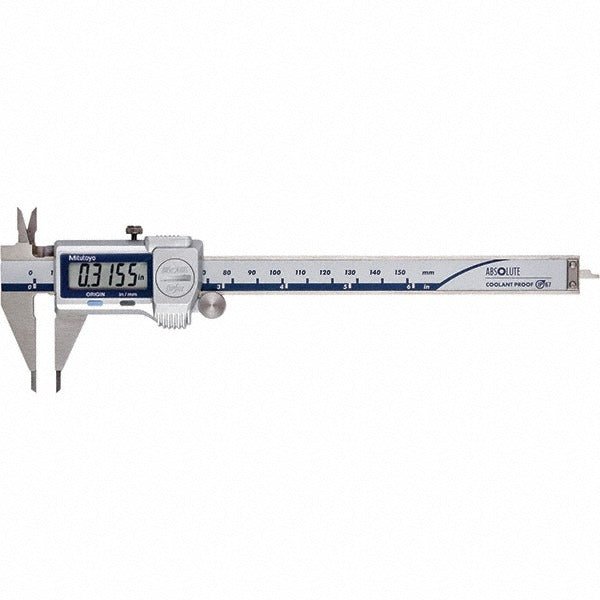

Mitutoyo 573-725-20 Digital Caliper 0-6 in IP67

Product Description

The MITUTOYO 573-725-20 is a digital electronic caliper designed for precision dimensional measurement in tool rooms, manufacturing floors, and field inspection applications. It covers a measurement range of 0 to 6 inches (0 to 150 mm) with a resolution of 0.0005 inches and an accuracy of 0.0010 inches. The caliper is constructed from hardened stainless steel throughout, including the jaws, providing durability in demanding environments. An IP67 rating protects the instrument against dust ingress and temporary water submersion, making it suitable for use in coolant-exposed machine shop conditions. A built-in data output port supports connection to statistical process control (SPC) systems or data loggers for automated measurement recording.

This caliper is suited for precision measurement tasks in manufacturing, machining, quality control, and maintenance applications. It performs outside diameter, inside diameter, depth, and step measurements from a single instrument, with standard sliding jaw adjustment powered by a single SR44 silver oxide battery included with the unit. The TUV Rheinland certification confirms the instrument meets recognized metrology standards. Licensed metrologists, machinist technicians, and quality assurance inspectors are the primary users of this tool in both production and inspection environments.

Key Features

• IP67-rated stainless steel body and jaws resist coolant, dust, and incidental water exposure
• 0.0005 inch resolution with 0.0010 inch accuracy across the full 0 to 6 inch range
• Measures outside diameter, inside diameter, depth, and step from one instrument
• Data output port enables direct connection to SPC software or data collection systems
• Includes carrying case and SR44 silver oxide battery for immediate use out of the box
• TUV Rheinland certified to recognized dimensional measurement standards

Compatibility

Designed as a general-purpose precision caliper within the MITUTOYO Series 573 line, compatible with standard SPC data collection interfaces that accept caliper data output signals.

Installation Notes

No installation is required for this handheld measuring instrument. Before use, inspect the jaw faces for debris and zero the caliper with jaws fully closed. Store the caliper in the included case when not in use to protect jaw surfaces and the sliding mechanism from damage. Battery replacement requires a standard SR44 silver oxide cell; ensure polarity is correct when installing a replacement.
