Mitutoyo 572-575 Vertical Electronic Linear Scale 24 in

Product Description

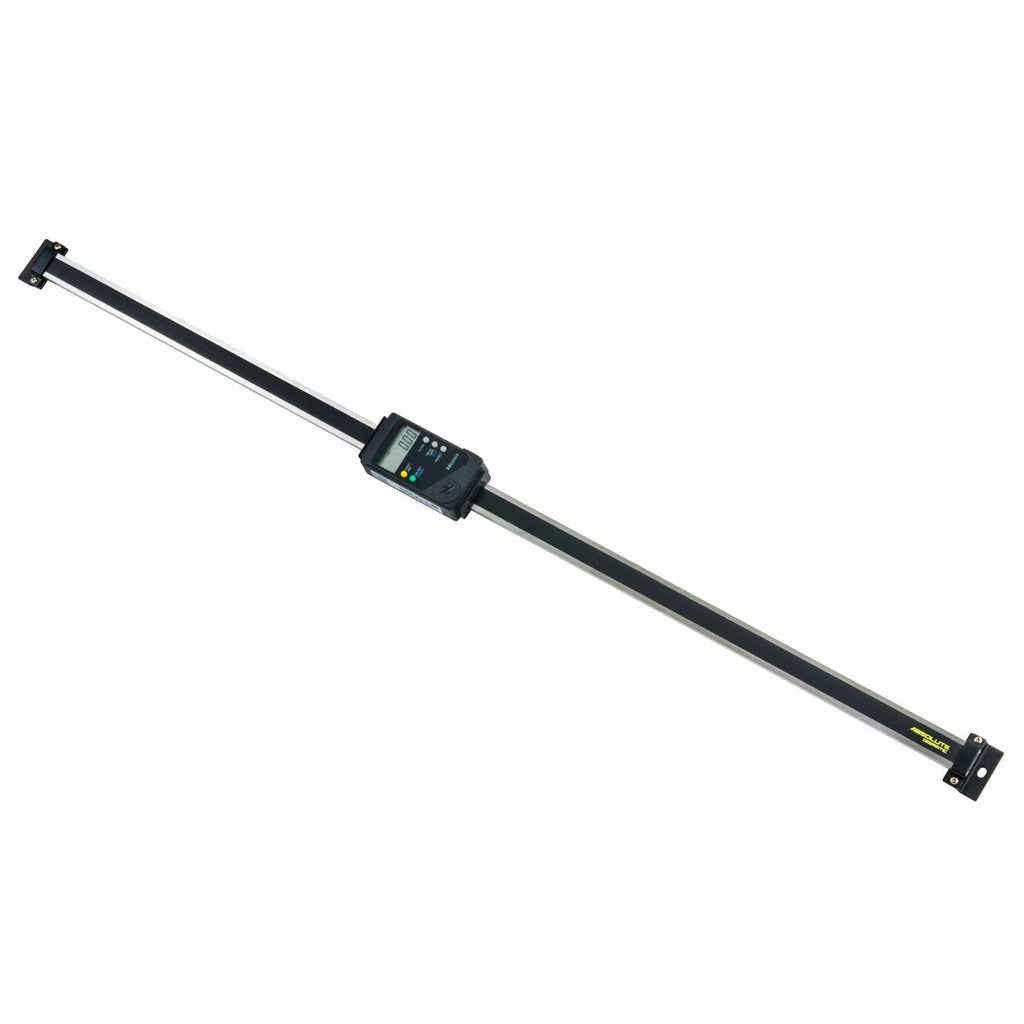

The MITUTOYO 572-575 is a vertical electronic linear scale designed for precision measurement in machine tool and fixturing applications. It covers a measurement range of 0 to 24 inches with an accuracy of 0.002 inches and a resolution of 0.0005 inches (0.01 mm), making it well suited for applications where repeatable, fine linear measurement is required. The scale features a digital data output interface and an LCD display, allowing direct readout on the unit or integration with data collection systems. It is powered by a single SR44 battery, which is included. Installation and setup are typically performed by machinists, toolmakers, or metrology technicians.

The MITUTOYO 572-575 is intended for vertical mounting in jig, fixture, and small machine tool setups. It is commonly installed on milling machines, lathes, drill presses, and custom fabricated tooling plates where a reliable digital position reference is needed. The scale length is 750 mm and the compact display measures 84 mm by 42 mm, allowing it to fit into confined machine envelopes. Typical users include machine shops, toolrooms, and production facilities requiring traceable positional measurements during setup or in-process inspection.

Key Features

• Measurement range of 0 to 24 inches covers most jig and small machine tool travel requirements
• 0.0005-inch (0.01 mm) resolution for fine positional readout
• 0.002-inch accuracy rating supports quality-critical setup work
• Digital data output enables connection to data loggers and SPC systems
• LCD display provides clear on-unit readout without additional instrumentation
• Runs on a single SR44 battery included in the package

Compatibility

Designed for vertical installation on jigs, small machine tools, and tooling fixtures. Compatible applications include jig setups, small machine tool frames, and general toolroom equipment requiring a vertical linear scale with digital output.

Installation Notes

Installation is typically performed by a machinist or toolroom technician. Power down or de-energize any machine the scale is being mounted to before beginning installation. Secure all mounting hardware firmly and verify the scale body is aligned parallel to the axis of travel before taking reference measurements. Do not expose the scale or display unit to cutting fluids, chips, or excessive vibration beyond the manufacturer-rated operating environment.
