Mitutoyo 572-572 Vertical Electronic Linear Scale 0-8 in

Product Description

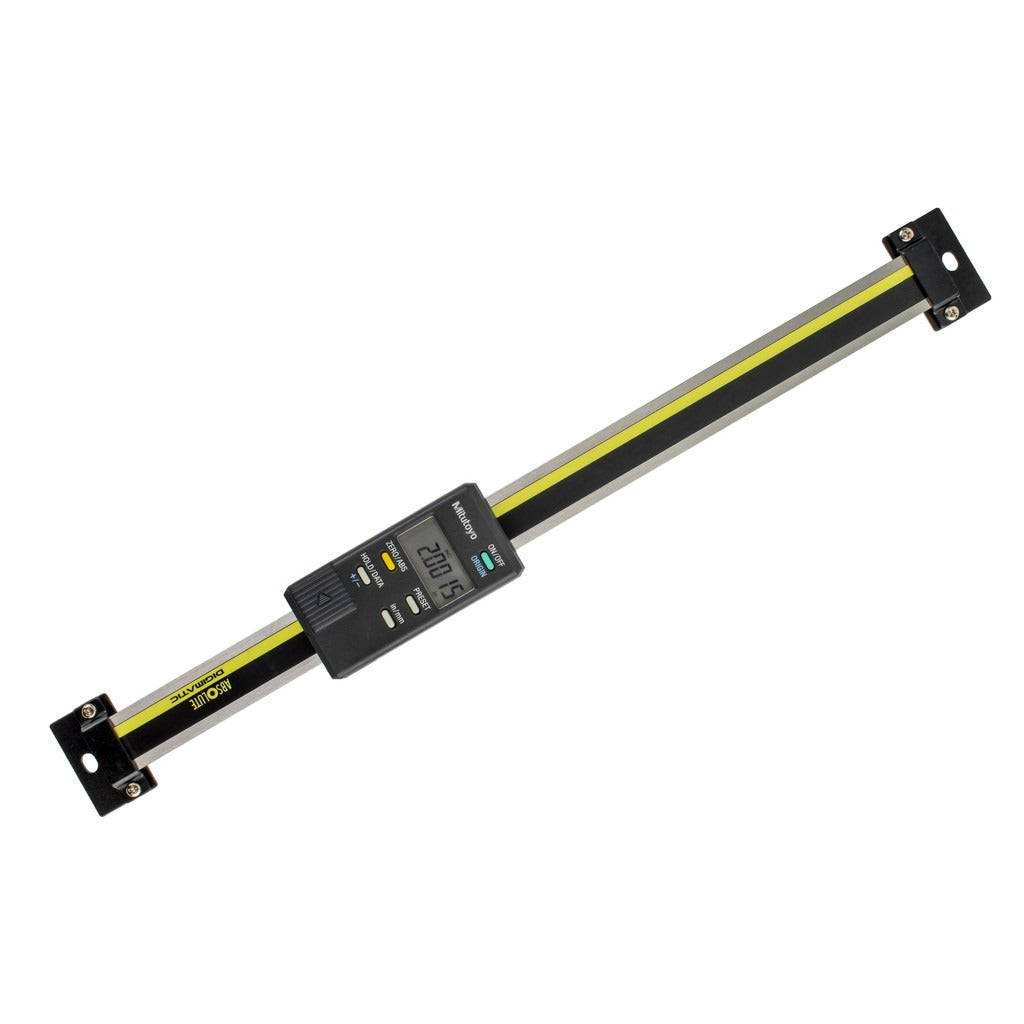

The MITUTOYO 572-572 is a vertical electronic linear scale designed for precision measurement in shop and toolroom environments. With a measuring range of 0 to 8 inches and an accuracy of 0.001 inches, it delivers reliable positional data for applications where repeatable, fine-resolution readings are critical. Resolution is 0.0005 inches (0.01 mm), and measurements are displayed on an integrated LCD. The scale includes data output capability, allowing readings to be sent to compatible data collection devices or SPC systems. One SR44 battery is included. Licensed tradespeople and precision machinists are the primary installers and users of this equipment.

The MITUTOYO 572-572 is suited for use on jigs, small machine tools, and general toolroom equipment where vertical scale orientation is required. It is appropriate for both production and inspection setups in light manufacturing environments. The scale length is 320.00 mm (approximately 12.6 inches), which accommodates the full 8-inch travel range. The LCD display measures 72.70 mm (approximately 2.86 inches) in length and 36.00 mm (approximately 1.42 inches) in width, keeping the readout compact and easy to mount in tight workspaces.

Key Features

• Measuring range of 0 to 8 inches with 0.001 inch accuracy
• Resolution of 0.0005 inches (0.01 mm) for fine positional readings
• Data output capability for SPC and external data collection
• Vertical scale orientation for direct integration with jigs and small machine tools
• LCD display for clear, easy-to-read measurement output
• Battery-powered operation with one SR44 battery included

Compatibility

Designed for vertical installation on jigs, small machine tools, and general toolroom fixtures requiring electronic linear scale measurement in the 0 to 8 inch range.

Installation Notes

Installation is typically performed by a machinist or metrology technician familiar with linear scale mounting. Power down or disconnect any associated machine tool before mounting the scale or routing data output cables. Follow the equipment manufacturer guidelines for bracket alignment and cable management to prevent interference with moving parts. Consult the MITUTOYO installation documentation for proper mounting tolerances and data output wiring procedures.
