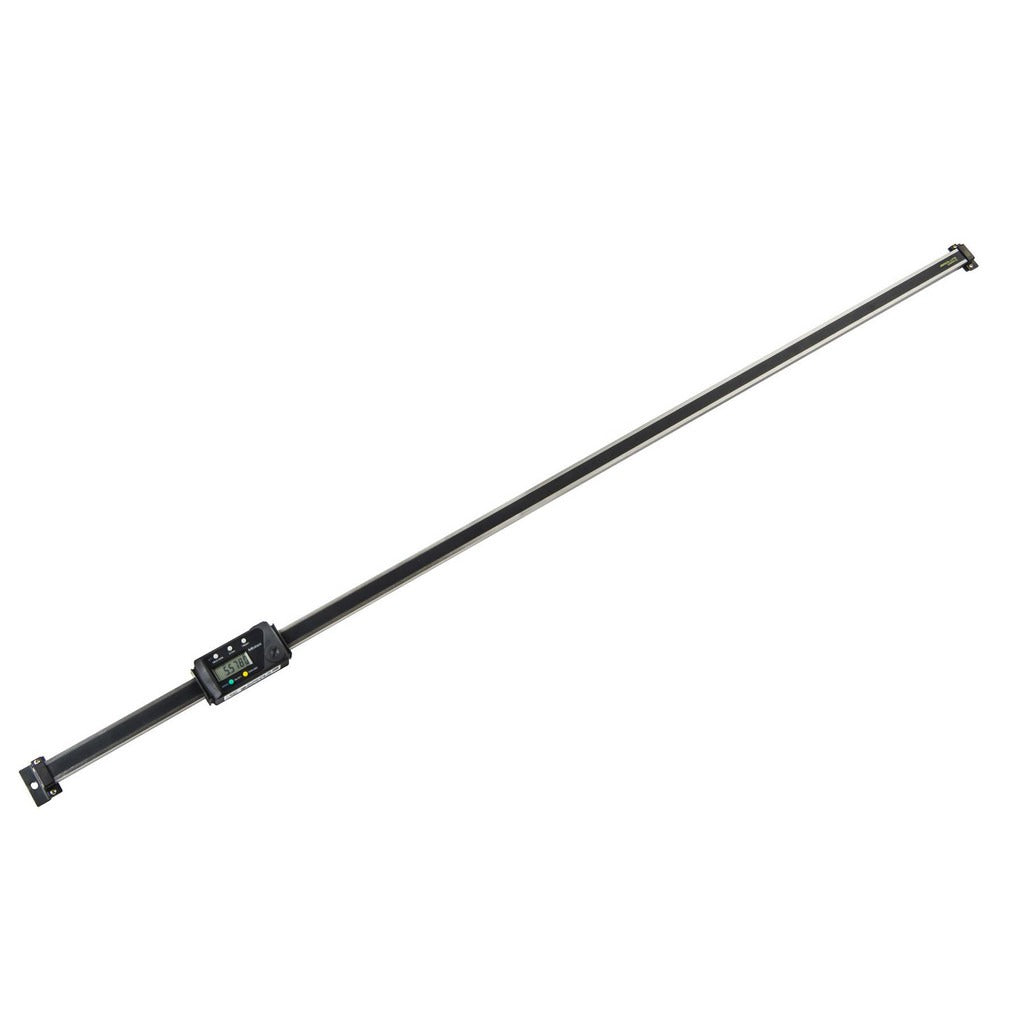

Mitutoyo 572-477 Horizontal Electronic Linear Scale

Product Description

The MITUTOYO 572-477 is a horizontal electronic linear scale with a measurement range of 0 to 40 inches, designed for precision positioning and dimensional measurement in shop and toolroom environments. The scale delivers a resolution of 0.0005 inches (0.01 mm) and an accuracy of 0.0025 inches, making it suitable for applications where repeatable, fine measurement is required. Output data is available electronically for integration with compatible data collection systems or displays. The unit runs on a single SR44 battery, which is included. Machinists, tool and die makers, and precision measurement technicians are the primary installers and operators.

The 572-477 is intended for horizontal mounting on jigs, small machine tools, and general tooling fixtures. The scale body spans a length of 1150 mm and features an LCD display measuring 84 mm by 42 mm, providing clear readout at the point of use. It is well suited for light industrial and precision shop settings where consistent, electronic linear measurement is needed along a fixed horizontal axis.

Key Features

• Measurement range of 0 to 40 inches with 0.0005 inch (0.01 mm) resolution
• Accuracy rated at 0.0025 inches for repeatable precision measurement
• Electronic data output for connection to compatible readout or data collection systems
• LCD display for clear on-scale readout during use
• Horizontal orientation designed for jig, fixture, and small machine tool mounting
• Powered by a single SR44 battery, included in the package

Compatibility

Designed for horizontal mounting on jigs, small machine tools, and tooling fixtures requiring electronic linear measurement up to 40 inches.

Installation Notes

Installation should be performed by a qualified machinist or metrology technician familiar with linear scale mounting procedures. The scale must be mounted on a rigid, flat surface to maintain accuracy across its full range. Ensure the mounting axis is properly aligned and parallel to the direction of travel before securing the scale. Power down any connected equipment before making electrical data output connections.
