Mitutoyo 572-311-10 Vertical Electronic Linear Scale

Product Description

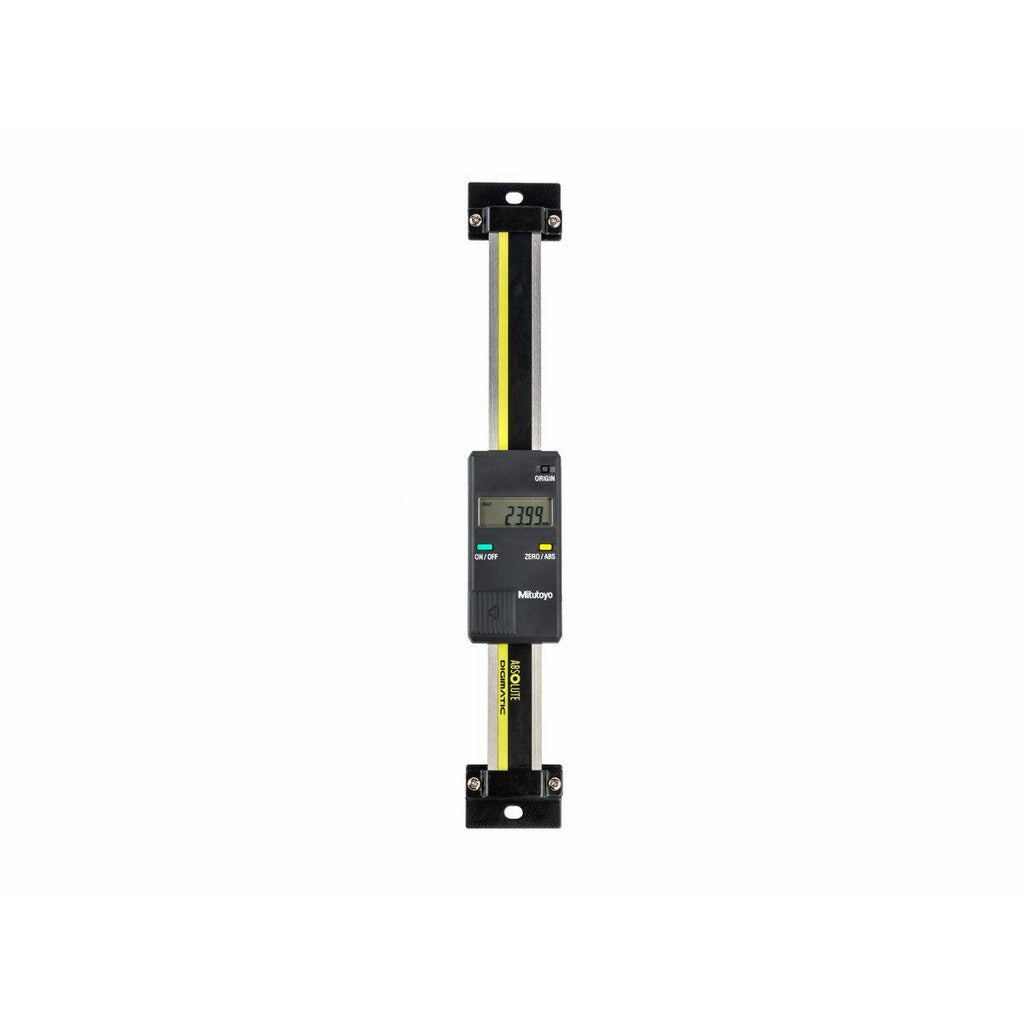

The MITUTOYO 572-311-10 is a vertical electronic linear scale designed for precision measurement in shop and production environments. It covers a measurement range of 0 to 6 inches with an accuracy of 0.001 inches and a resolution of 0.0005 inches, making it suitable for applications where tight tolerances are required. The scale features an LCD display and provides data output, allowing integration with data collection systems. It is powered by a single SR44 battery, which is included. Licensed metrology technicians, toolmakers, and machining professionals typically install and use this type of instrument.

This scale is oriented vertically and is well suited for use on jigs, small machine tools, and tooling fixtures. The 235.00 mm scale length and compact display footprint make it practical for retrofit or new installation on benchtop equipment. Applications include dimensional verification, position monitoring, and in-process measurement on light manufacturing and toolroom machinery. The built-in data output port supports connection to compatible data loggers or SPC software for quality documentation.

Key Features

• Measurement range of 0 to 6 inches with 0.001-inch accuracy
• Resolution of 0.0005 inches (0.01 mm) for fine positional feedback
• LCD display with data output for SPC or data logging integration
• Vertical orientation designed for jig and small machine tool mounting
• Battery powered with one SR44 battery included
• Compact display at 59.20 mm long by 38.90 mm wide

Compatibility

Designed for vertical installation on jigs, small machine tools, and tooling fixtures requiring a 0 to 6 inch electronic linear scale with data output capability.

Installation Notes

Installation is typically performed by toolmakers or calibration technicians familiar with linear scale mounting and alignment. Power down or disconnect any equipment the scale will be mounted to before beginning installation. Mounting surfaces should be clean, flat, and free of burrs to ensure accurate alignment along the measurement axis. Follow the manufacturer documentation for data output wiring to prevent signal errors or connector damage.
