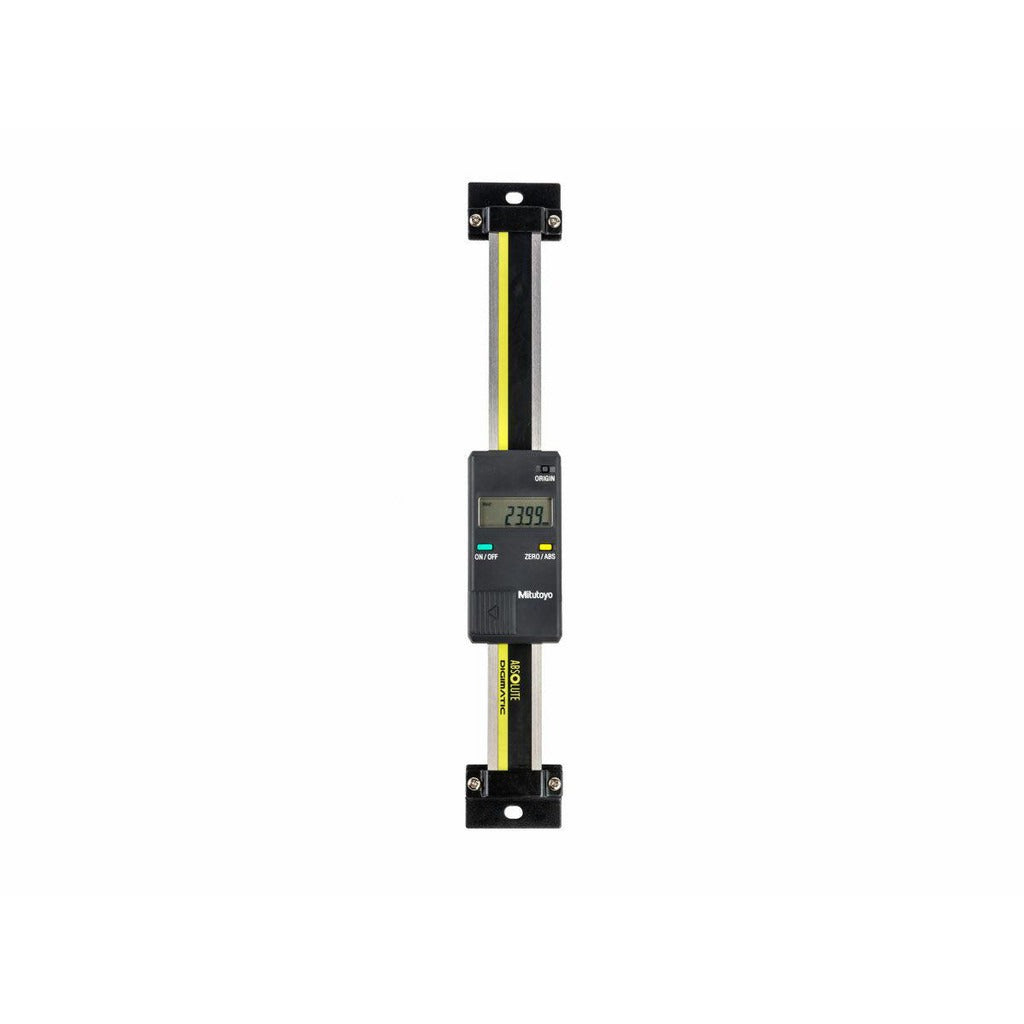

Mitutoyo 572-310-10 Vertical Electronic Linear Scale

Product Description

The MITUTOYO 572-310-10 is a vertical electronic linear scale designed for precision measurement in workshop and machine tool applications. It covers a measurement range of 0 to 4 inches with an accuracy of 0.001 inches and a resolution of 0.0005 inches (0.01 mm). The scale features an LCD display and provides data output for integration with compatible readouts or data collection systems. It is powered by a single SR44 battery, which is included. This type of scale is typically installed and maintained by machinists, toolmakers, and precision measurement technicians.

The 572-310-10 is suited for use with jigs, small machine tools, and general tooling setups where repeatable, high-resolution linear position feedback is required. The vertical orientation makes it appropriate for installations where the measuring axis runs perpendicular to the work surface. Its data output capability supports connection to digital readout systems, making it practical for both standalone measurement tasks and integrated machine tool applications.

Key Features

• Measurement range: 0 to 4 inches
• Accuracy: 0.001 inches
• Resolution: 0.0005 inches (0.01 mm)
• LCD display for direct readout
• Data output for DRO or data collection integration
• Battery powered using one SR44 cell, included
• Vertical scale orientation for machine tool and jig mounting

Compatibility

Designed for use with jigs, small machine tools, and tooling setups that accept a vertically oriented electronic linear scale with data output. Confirm mounting dimensions and interface compatibility with your specific readout or machine tool before installation.

Installation Notes

Installation is typically performed by a machinist or precision instrument technician. Power down any machine tool or readout system before mounting the scale or connecting the data output cable. Ensure the mounting surface is clean and flat to maintain measurement accuracy. Follow the machine tool manufacturer's guidelines and any applicable metrology or shop safety standards during installation.
