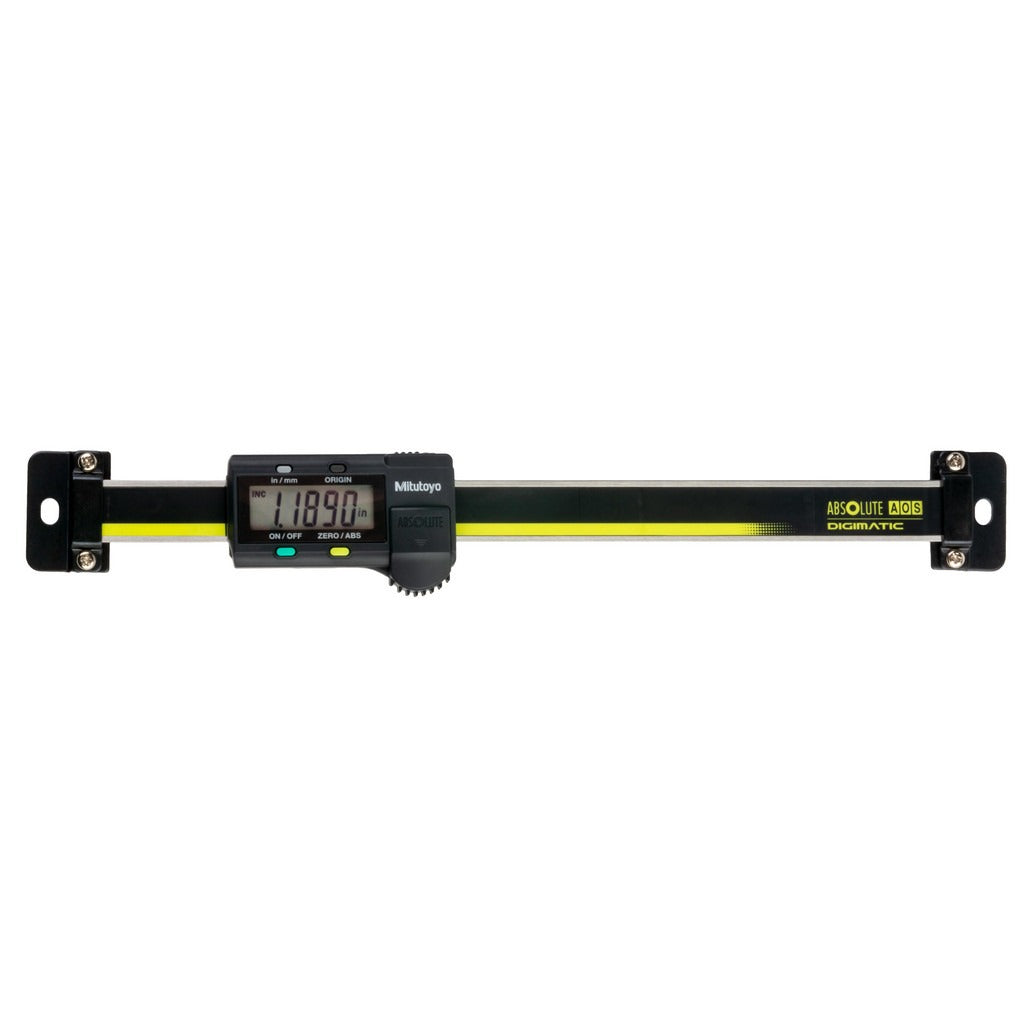

Mitutoyo 572-211-30 Electronic Linear Scale 0-6 in

Product Description

The MITUTOYO 572-211-30 is a horizontal electronic linear scale designed for precision measurement in industrial, workshop, and inspection environments. It delivers a measurement range of 0 to 6 inches with an accuracy of 0.001 inches and a resolution of 0.0005 inches (0.01 mm). The scale outputs data electronically, making it compatible with data collection systems and statistical process control workflows. It is battery powered using an SR44 cell. Metrology technicians, machinists, and quality control professionals install and use this scale for repeatable, high-precision linear positioning and measurement tasks.

The 572-211-30 is suited for horizontal linear scale applications in production and inspection settings. It fits into measurement systems requiring electronic data output, enabling direct connection to readout units, data loggers, or SPC software. The scale is appropriate for both light manufacturing and precision metrology applications where sub-thousandth resolution is required and manual reading error must be eliminated.

Key Features

• Measurement range of 0 to 6 inches for versatile linear coverage
• Accuracy of 0.001 inches for reliable precision measurement
• Resolution of 0.0005 inches (0.01 mm) for fine positioning feedback
• Electronic data output supports connection to readout units and SPC systems
• Horizontal orientation for straightforward installation in linear scale assemblies
• Battery powered via SR44 cell for standalone operation without external power supply

Compatibility

Designed as an OEM-style horizontal electronic linear scale for use in precision measurement and positioning systems requiring a 0 to 6 inch range with electronic data output.

Installation Notes

Installation should be performed by a qualified metrology technician or machinist familiar with linear scale mounting procedures. Power down any connected readout or machine tool control before mounting or connecting the scale. Ensure the mounting surface is clean and flat to maintain alignment within the scale's specified accuracy. Follow the manufacturer's documentation for data output wiring and interface connections to avoid signal errors.
