Mitutoyo 570-414 Electronic Height Gage 24 in

Product Description

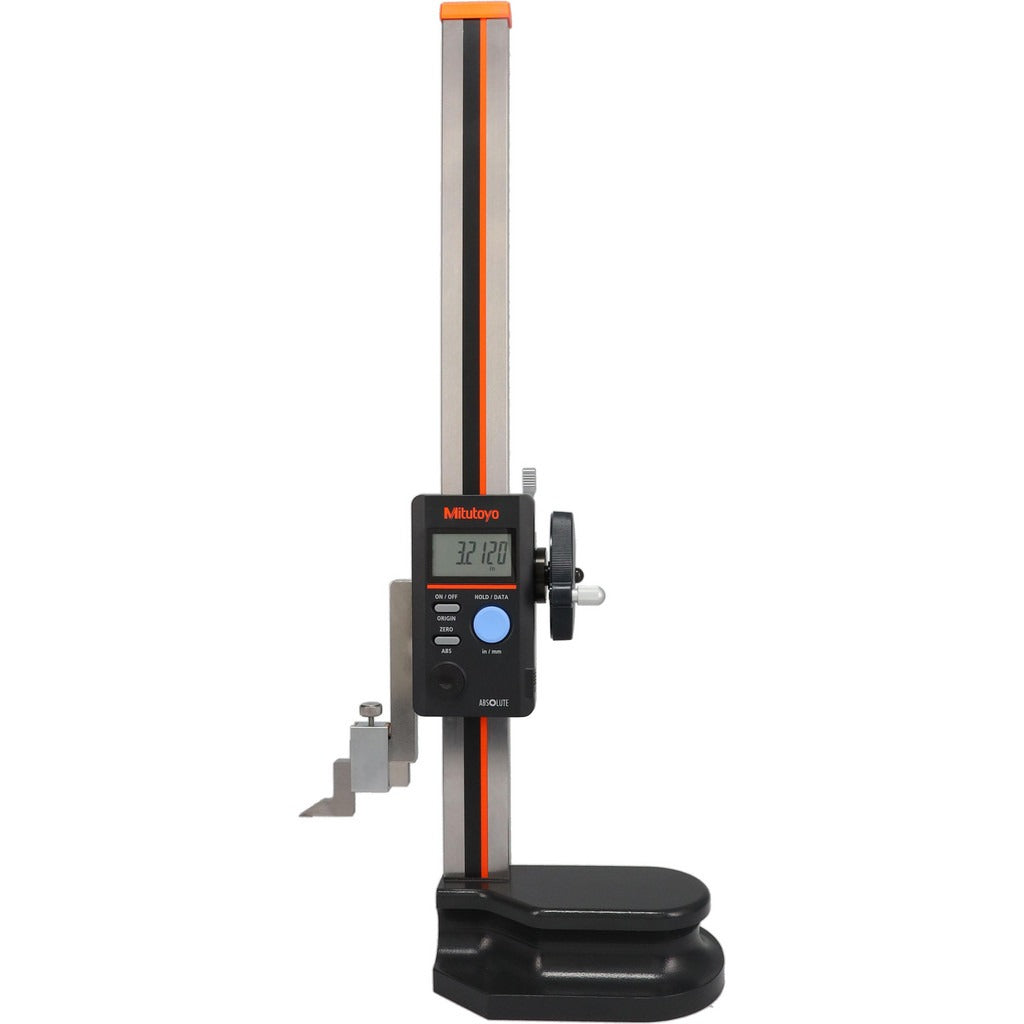

The MITUTOYO 570-414 is a digital electronic height gage designed for precise linear measurement on surface plates and inspection setups. It measures up to 24 inches (600 mm) with a resolution of 0.0005 inches (0.01 microns) and an accuracy of 0.002 inches (0.050 mm). The large 12 mm LCD display provides clear readings in the shop or inspection room. Movement is controlled by a feed wheel mechanism for smooth, repeatable positioning. This instrument is used by machinists, quality technicians, and tool room professionals who require reliable height measurement in production or inspection environments.

The 570-414 is suited for dimensional inspection on flat reference surfaces in both manufacturing and quality control settings. It is compatible with Mitutoyo U-Wave wireless data output, making it a practical choice for shops running statistical process control or data logging workflows. The unit ships with a cover, scriber, and scriber clamp, allowing immediate use out of the box. It operates on a single SR44 silver oxide battery, which is included. This gage fits naturally into any inspection setup where a 24-inch vertical measurement range is required.

Key Features

• 24-inch (600 mm) maximum measurement range for tall workpieces
• 0.0005-inch resolution for fine dimensional discrimination
• Large 12 mm LCD screen for easy reading in production environments
• Feed wheel mechanism provides smooth, controlled vertical travel
• Compatible with Mitutoyo U-Wave wireless data transmission system
• Large Data/Hold button simplifies single-handed operation during measurement
• Includes cover, scriber, and scriber clamp for complete out-of-box readiness

Compatibility

Compatible with the Mitutoyo U-Wave wireless data output system. Designed as an OEM-style electronic height gage for use on standard surface plates in inspection and machine shop environments.

Installation Notes

Electronic height gages are set up and operated by machinists, metrologists, or quality technicians on a clean, level surface plate. Before use, verify the surface plate is free of burrs, chips, and debris that could affect base seating and reading accuracy. Install the SR44 battery according to the battery compartment markings before first use. Do not expose the unit to coolant, cutting fluid, or excessive vibration, as these conditions can affect measurement reliability and display function.
