Mitutoyo 570-412 Electronic Height Gage 12 in Lcd

Product Description

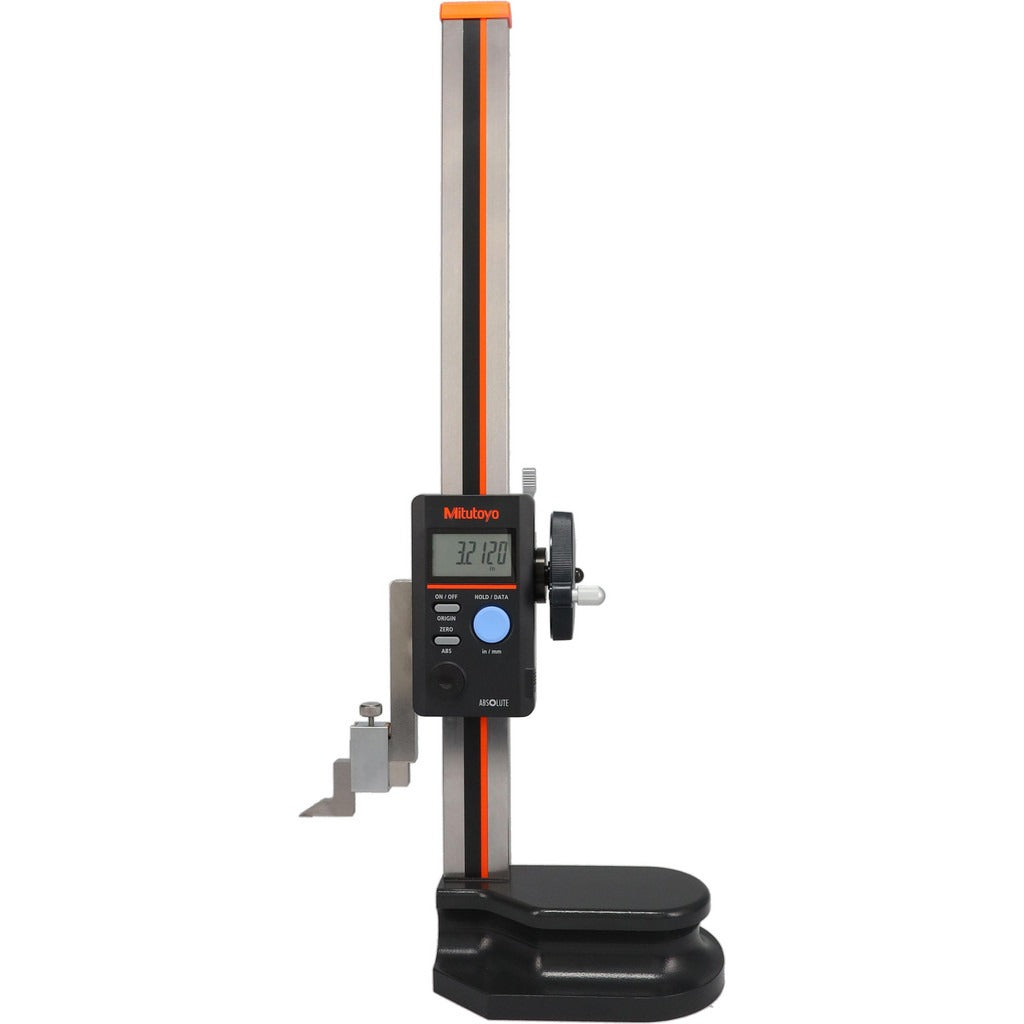

The MITUTOYO 570-412 is an electronic height gage designed for precise vertical measurement in inspection, layout, and quality-control applications. It measures up to 12 inches (300 mm) with an accuracy of 0.0015 inches (0.030 mm) and a resolution of 0.010 microns, making it suitable for demanding dimensional verification work. A feed wheel mechanism provides smooth, controlled stylus movement along the column. The large LCD screen with 12 mm digit height ensures fast, accurate readings even in low-visibility shop conditions. This instrument is used by machinists, quality technicians, and tool-and-die professionals.

The 570-412 is suited for use on surface plates in both production and inspection environments. Its base width of 100 mm provides a stable footprint for repeatable measurements across a range of workpiece sizes. The gage is compatible with Mitutoyo U-Wave wireless data transmission systems, allowing measurement data to be sent directly to a connected PC or SPC software without manual transcription. It ships with a cover, scriber, and scriber clamp, making it ready for immediate use out of the box.

Key Features

• 12 inch (300 mm) maximum measurement range for versatile vertical inspection tasks
• 0.0015 inch accuracy supports high-precision dimensional verification
• Large LCD display with 12 mm digit height for easy reading at the bench
• Feed wheel mechanism for smooth, controlled stylus positioning
• Compatible with Mitutoyo U-Wave wireless data output system
• Large Data/Hold button allows single-handed operation during layout work
• Includes cover, scriber, and scriber clamp — ready to use out of the box

Compatibility

Compatible with Mitutoyo U-Wave wireless data transmission systems. Designed as a standalone electronic height gage for use on standard surface plates in inspection and layout applications.

Installation Notes

Installation and setup should be performed by a qualified metrology technician or machinist familiar with surface plate instruments. Place the gage on a clean, level surface plate before zeroing the instrument. Install the included SR44 silver oxide battery before first use, following the polarity markings in the battery compartment. Avoid exposing the gage to cutting fluids, excessive vibration, or impact, which can affect calibration and display function.
