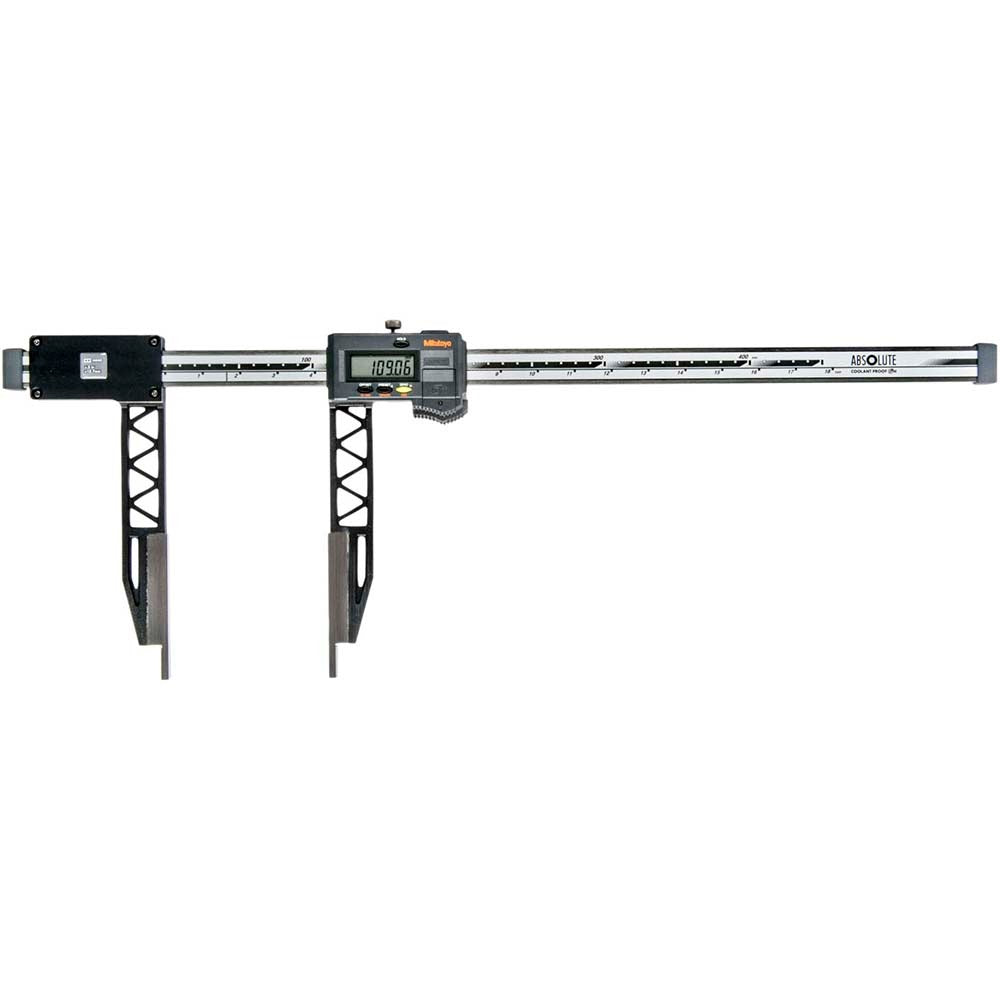

Mitutoyo 552-160-10 Electronic Caliper 18 in IP66

Product Description

The MITUTOYO 552-160-10 is a large-range electronic caliper from the 552 Digimatic Carbon Fiber series, designed for precise outside and inside diameter measurements in demanding shop and field environments. Built with a carbon fiber reinforced plastic beam and jaws, it spans a full 18 inches of measurement range with a resolution of 0.0005 inches and an accuracy of 0.0025 inches. The IP66 rating provides protection against dust and high-pressure water jets, making it suitable for use in wet or contaminated workspaces. A data output port allows direct transmission of measurements to a compatible data collection system or SPC software, reducing transcription errors on the shop floor.

This caliper is used in precision measurement applications requiring a long-reach instrument — including fabrication shops, machine shops, quality control labs, and industrial maintenance operations. The nib-style jaws support outside diameter and inside diameter measurements, with a 200 mm jaw length suited to large workpieces. It is a battery-powered instrument using a single SR44 silver oxide cell, which is included. The included case supports safe transport and storage between jobs.

Key Features

• 18-inch maximum measurement range with 0.0005-inch resolution
• Accuracy of 0.0025 inches across the full measurement range
• IP66-rated carbon fiber reinforced plastic body and jaws for durability in harsh environments
• Nib-style jaws for outside and inside diameter measurements
• Data output port for SPC or digital data collection integration
• Powered by one SR44 silver oxide battery, included with the instrument

Compatibility

Designed as a standalone precision measurement instrument in the MITUTOYO 552 Digimatic Carbon Fiber series. Data output is compatible with Mitutoyo Digimatic data collection interfaces and SPC systems that accept standard Digimatic signal output.

Installation Notes

This instrument is handled and calibrated by metrology technicians or qualified machinists. Prior to use, verify the zero setting with the jaws fully closed. The caliper does not require installation into a system but should be stored in the provided case to protect the sliding jaw mechanism and data output port. Follow the instrument manufacturer guidelines for battery replacement and periodic cleaning of the jaw contact surfaces.
