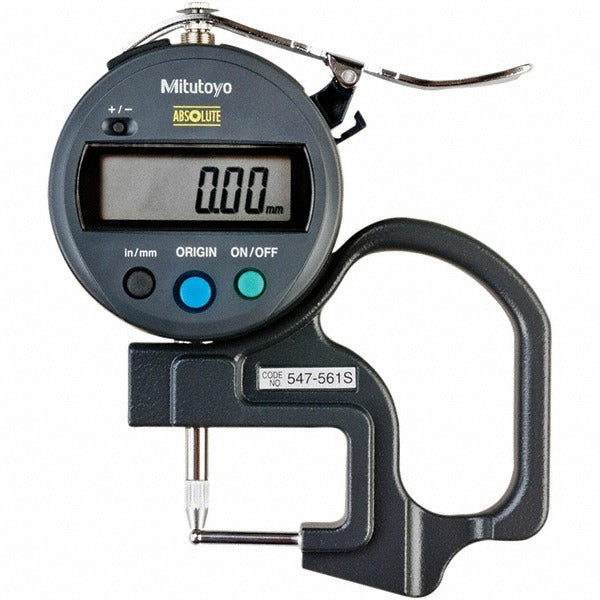

Mitutoyo 547-561S Electronic Thickness Gage 0-12mm

Product Description

The MITUTOYO 547-561S is an electronic thickness gage designed for precise measurement of material thickness in workshop and quality-control environments. It measures from 0 to 12mm with a resolution of 0.01mm and an accuracy of 0.001 inches. The gage uses Mitutoyo Digimatic technology with an Absolute (ABS) linear scale, which eliminates the need to return to zero on startup. Measuring force is a consistent 1.5 N, making it suitable for thin, delicate materials without causing deformation. A grip handle and waterproof data output connector add to its practical usability on the shop floor. Calibration professionals, quality technicians, and precision machinists are the primary users of this instrument.

The 547-561S is suited for thickness measurement applications in manufacturing, fabrication, and inspection settings where consistent, repeatable readings are required. The ceramic anvil face resists wear and corrosion, extending service life in environments where metal contact faces would degrade. SPC output capabilities allow the gage to connect to statistical process control systems for real-time data logging and analysis. The waterproof data output connector supports integration with Mitutoyo Digimatic-compatible data collection equipment, making this gage a practical choice for structured quality programs.

Key Features

• Absolute (ABS) linear scale eliminates zero-reset routines on power-up
• 0.01mm resolution with 0.001-inch accuracy for precise thickness measurement
• Ceramic anvil face for corrosion resistance and long-term durability
• 1.5 N measuring force protects delicate or thin workpieces
• SPC output capabilities for integration with data collection and quality systems
• Waterproof data output connector for reliable connectivity in shop environments

Compatibility

Designed for use with Mitutoyo Digimatic-compatible SPC data collection systems and cables. Compatible with standard SR44 battery power supply.

Installation Notes

This gage requires no permanent installation. Before first use, install the included SR44 battery and verify the anvil and contact surfaces are clean and free of debris. Always handle the ceramic anvil face with care to avoid chipping. Calibrate the instrument against a known reference standard before taking measurements in critical quality-control applications.
