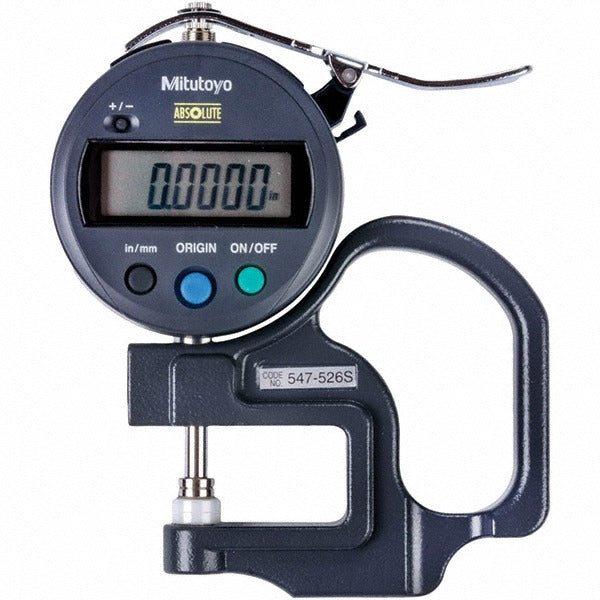

Mitutoyo 547-526S Electronic Thickness Gage 0-12mm

Product Description

The MITUTOYO 547-526S is a handheld electronic thickness gage designed for precise measurement of material thickness in industrial and quality-control applications. It measures from 0 to 12mm with a resolution of 0.001mm and an accuracy of 0.0002 inches, making it suitable for thin-material inspection tasks where tight tolerances matter. The gage uses Digimatic technology with an Absolute linear scale that retains position data on power-up, eliminating the need to re-zero before each use. A grip handle provides stable one-handed operation during measurement. Licensed metrology technicians, QC inspectors, and precision fabricators are the primary users of this instrument.

The 547-526S is well-suited for measuring sheet metal, gaskets, plastics, rubber, glass, ceramics, and similar flat or low-profile workpieces in manufacturing, fabrication, and inspection environments. The ceramic anvil face minimizes wear during repeated contact cycles, extending service life in production settings. The low measuring force of 1.5 N reduces deflection on soft or flexible materials, helping maintain measurement integrity across a range of substrates. SPC output capabilities allow integration with statistical process control data collection systems.

Key Features

• Absolute linear scale retains position on power-up — no origin re-zero required each session
• 0.001mm resolution with 0.0002-inch accuracy for tight-tolerance inspection
• Ceramic anvil face for enhanced wear resistance during high-cycle use
• Low 1.5 N measuring force minimizes deflection on soft or compliant materials
• SPC output connector enables direct data transfer to statistical process control systems
• Waterproof data output connector for use in shop-floor environments
• Corrosion-resistant construction suitable for industrial shop conditions

Compatibility

Designed as a precision OEM-specification thickness gage compatible with Mitutoyo Digimatic SPC data collection systems and interfaces that accept standard Digimatic output.

Installation Notes

This instrument requires no installation; it is a handheld measuring device operated by metrology or QC personnel. Prior to first use, install the included SR44 battery and verify the gage zeroes correctly against a known reference. Keep the anvil faces clean and free of debris to maintain measurement accuracy. Calibration should be performed at intervals appropriate to the application and per your facility quality system requirements.
