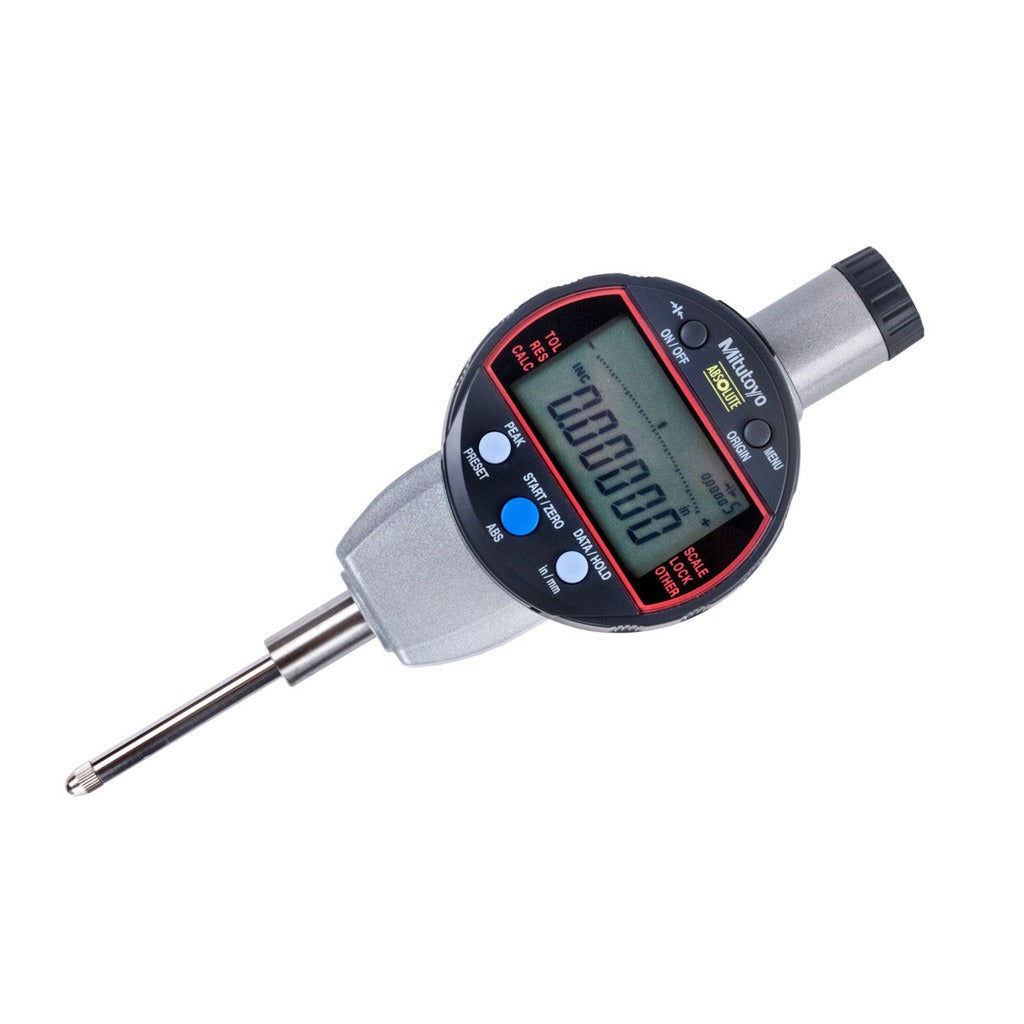

Mitutoyo 543-592B-10 Digimatic Indicator 1 in

Product Description

The MITUTOYO 543-592B-10 is a calctype electronic digital indicator designed for precise dimensional measurement in industrial and trade applications. It offers a measurement range of 0 to 1 inch with a resolution of 0.001 mm (0.00005 inches), making it suitable for high-precision inspection work. The stem diameter is 0.375 inches, allowing mounting in standard indicator holders and magnetic bases. Contact points are carbide-tipped for durability during repeated use. This indicator is used by machinists, quality control technicians, and precision tradespeople who require repeatable, reliable dimensional readings.

This indicator fits standard bench inspection setups, surface plate work, and machine tool setups where digital readout is preferred over analog dial. The 0.375-inch stem mounts directly into common indicator holders, back-plunger fixtures, and transfer stands. With a 40 mm dial body, it fits compact inspection environments without obstruction. Typical users include metrology lab technicians, machine shop inspectors, and tool-and-die tradespeople performing part verification and runout checks.

Key Features

• Resolution of 0.001 mm (0.00005 inches) for high-precision dimensional measurement
• 1 inch (25.4 mm) total measurement range
• 0.375-inch stem diameter fits standard indicator holders and magnetic bases
• Carbide contact point for extended wear resistance
• 40 mm dial diameter for compact fitment in tight inspection setups
• Digital Digimatic output for direct readout without analog interpolation

Compatibility

Designed as an OEM-style replacement or direct-use digital indicator compatible with standard 0.375-inch stem indicator holders, magnetic bases, and transfer fixtures common in industrial metrology setups.

Installation Notes

Installation is performed by machinists or metrology technicians. Secure the 0.375-inch stem in a calibrated indicator holder or magnetic base, ensuring the contact point is aligned perpendicular to the measured surface for accurate readings. Avoid side-loading the plunger, as lateral force can affect accuracy and damage the spindle. Zero the indicator at the reference datum before taking measurements.
