Mitutoyo 542-007A Ec Counter Color Display 1 Axis

Product Description

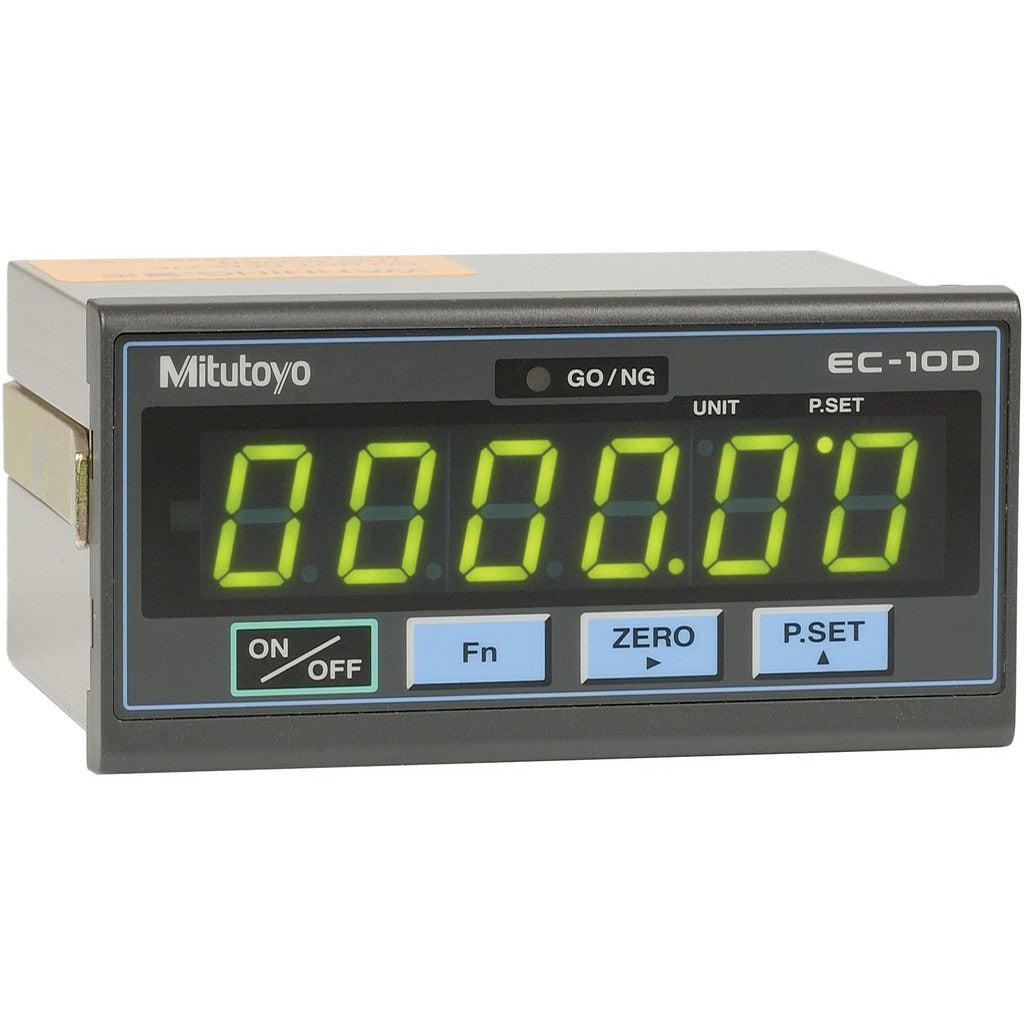

The MITUTOYO 542-007A is a single-axis electronic counter unit featuring a color LED display, designed for use with Digimatic output tools in precision measurement applications. It accepts digital input from compatible Mitutoyo measuring instruments and presents real-time dimensional data on a clear, high-visibility color screen. Measuring 3.78 inches wide, 3.21 inches deep, and 1.89 inches tall, the unit is compact enough for bench-top or machine-side mounting. Weighing 3 pounds, it is built for stationary use in controlled shop environments. Metrology technicians, quality control personnel, and CNC setup machinists are the primary users of this type of counter unit.

The 542-007A is suited for single-axis dimensional measurement setups in manufacturing, inspection, and machine tool environments. It interfaces directly with Digimatic output tools such as digital calipers, micrometers, and indicators that carry Mitutoyo Digimatic serial output. Typical installations place the counter at an inspection station or beside a machine tool where continuous numeric readout of a single measurement axis is required. Operating temperature range is 0 to 40 degrees C, making it appropriate for standard indoor industrial and shop environments.

Key Features

• Color LED display for high-visibility readout of dimensional data
• Single-axis configuration for straightforward one-dimension measurement setups
• Compatible with Digimatic output tools including digital calipers, micrometers, and indicators
• Compact footprint at 3.78 inches wide by 3.21 inches deep by 1.89 inches tall
• Operates across 0 to 40 degrees C for standard indoor industrial environments

Compatibility

Designed for use with Mitutoyo Digimatic output tools. Accepts standard Digimatic serial output from compatible single-axis measuring instruments.

Installation Notes

Installation and setup of electronic counter units is typically performed by metrology technicians or qualified machine tool operators. Power down all connected measurement tools and the counter unit before making or breaking cable connections. Ensure the operating environment stays within the specified temperature range of 0 to 40 degrees C to maintain measurement accuracy. Consult the manufacturer documentation for proper grounding and cable routing to minimize electrical noise interference.
