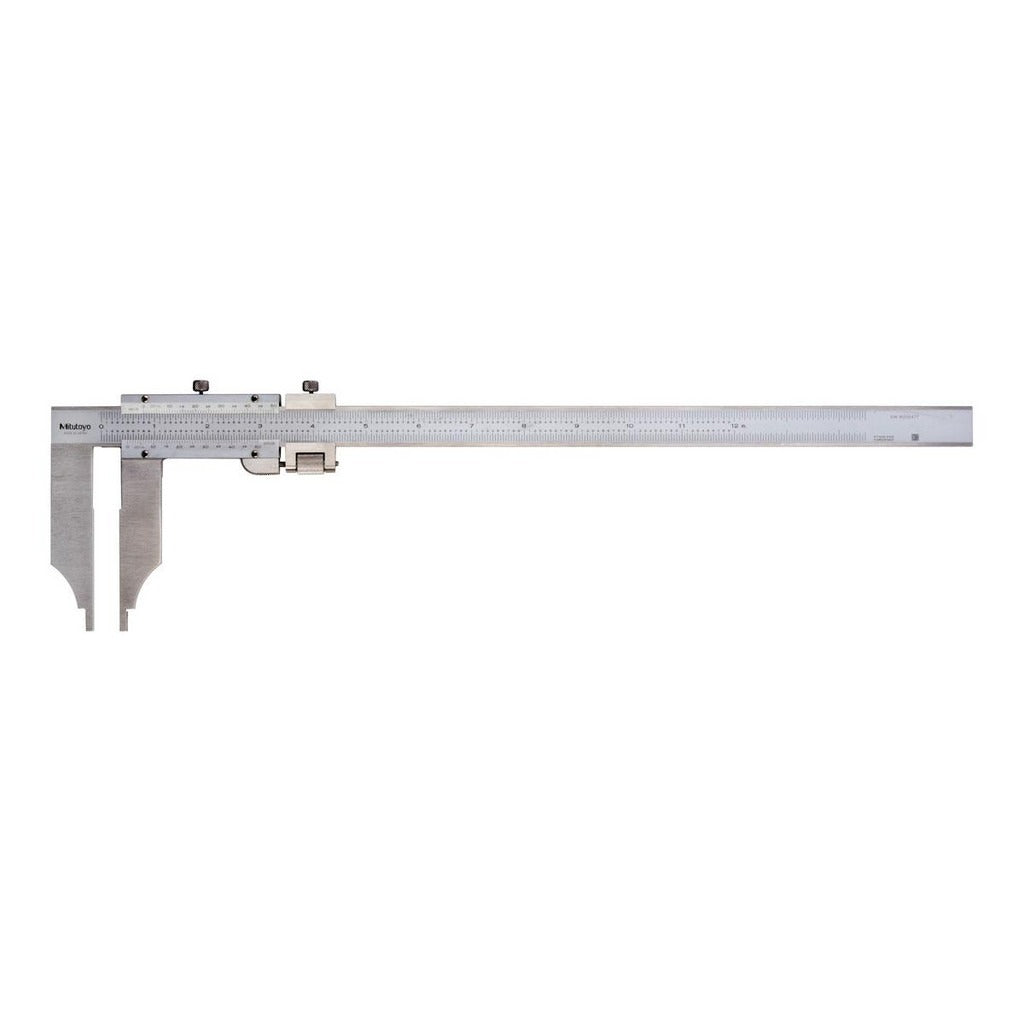

Mitutoyo 534-119 Vernier Caliper 0-30 in Stainless Steel

Product Description

The MITUTOYO 534-119 is a large-range vernier caliper designed for precise linear measurement in professional trade and industrial environments. It covers a measurement range of 0 to 30 inches with a graduation of 0.001 inches and an accuracy of 0.004 inches, making it suitable for both inside and outside measurements requiring close tolerances. The beam, jaw, and contact surfaces are constructed from satin chrome-finished stainless steel for corrosion resistance and long service life. The caliper ships with a protective case. This instrument is typically used by machinists, millwrights, pipe fitters, and precision maintenance technicians who need a reliable manual measuring tool for large workpieces.

The 534-119 is used in industrial maintenance, fabrication shops, and field service applications where large-diameter or long-span measurements must be taken without power. Its 7.874-inch jaw depth allows clearance on deep or wide workpieces. Double set screws provide positive lock on the sliding jaw, preventing unintended movement during reading. The caliper performs both inside and outside measurements from a single instrument, reducing the need for multiple gauges on the job.

Key Features

• Measurement range: 0 to 30 inches for large-span applications
• Graduation of 0.001 inches for fine vernier reading
• Accuracy rated at 0.004 inches
• Stainless steel beam and jaws with satin chrome finish for corrosion resistance
• Double set screws for positive jaw lock during measurement
• Jaw depth of 7.874 inches for clearance on deep workpieces
• Includes protective storage case

Compatibility

Designed as a general-purpose large-range vernier caliper suitable for precision measurement tasks in industrial, fabrication, and field maintenance applications.

Installation Notes

This is a precision measuring instrument, not an installed component. Handle with care to avoid dropping or subjecting the beam to impact, which can affect calibration. Clean contact surfaces before use to prevent measurement errors caused by debris or burrs. Store in the included case when not in use to protect the measuring faces and vernier scale.
