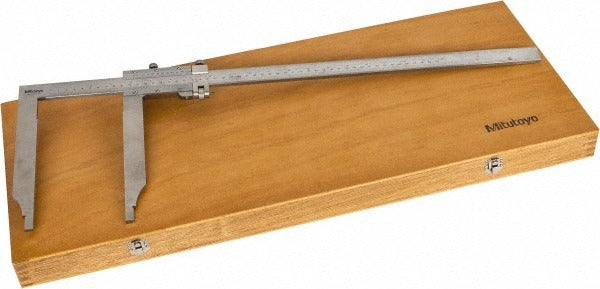

Mitutoyo 534-106 Vernier Caliper 0-20 in Stainless Steel

Product Description

The MITUTOYO 534-106 is a large-range vernier caliper designed for precise inside and outside dimensional measurement across a full 0 to 20 inches range. Graduated at 0.001 inches (0.02 mm), it delivers an accuracy of 0.06 mm, making it suitable for demanding inspection and layout work in fabrication, machining, and mechanical service environments. The caliper body and jaws are constructed from stainless steel with a satin chrome finish, providing corrosion resistance and long service life under shop conditions. Double set screws secure the sliding jaw during readings. The 534-106 ships with a protective case for storage and transport.

This caliper is intended for professional use in applications requiring long-range dimensional verification — typical in heavy fabrication, structural work, large-bore pipe fitting, and industrial maintenance. Its 7.874-inch (200 mm) jaw depth allows measurement access on deep or recessed features. It is calibrated for both inch and metric readings, with inch graduation at 0.001 inches and metric graduation at 0.02 mm. Licensed tradespeople and quality-control technicians in mechanical and industrial settings are the primary users.

Key Features

• Measurement range: 0 to 20 inches (0 to 500 mm)
• Graduation: 0.001 inches / 0.02 mm dual-scale vernier
• Accuracy: 0.06 mm across full range
• Jaw depth: 7.874 inches (200 mm) for deep-reach measurement
• Full stainless steel construction with satin chrome finish
• Double set screws for positive jaw lock during readings
• Includes protective carrying case

Compatibility

Designed as an OEM-specification precision measuring tool in the MITUTOYO 534 Series, suitable for industrial and trade applications requiring large-range vernier caliper measurement in inch and metric scales.

Installation Notes

Vernier calipers require no installation but should be zeroed and inspected for jaw alignment before use. Handle the measuring faces with care to avoid nicks or burrs that affect accuracy. Store the caliper in its included case when not in use to protect the graduated surfaces. Periodic cleaning of the sliding jaw and beam with a lint-free cloth maintains measurement reliability.
