Mitutoyo 513-443-10T Dial Test Indicator Kit 9 Pc

Product Description

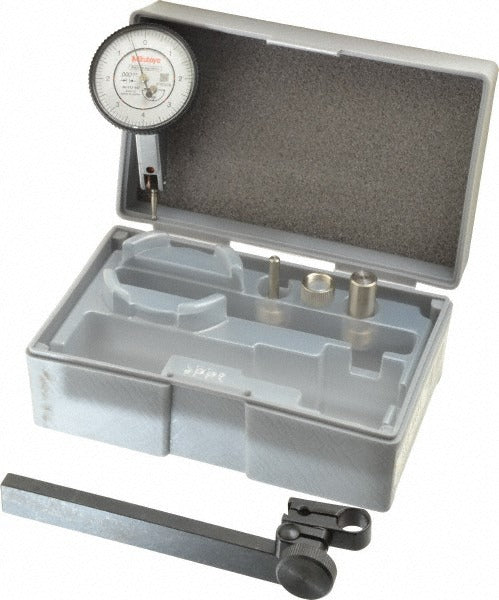

The MITUTOYO 513-443-10T is a 9-piece horizontal-style dial test indicator kit designed for precision measurement work in machining, tooling, and quality control applications. The kit centers on a dial test indicator with a 0.016-inch measuring range, a dial graduation of 0.0001 inches, and an accuracy of 0.0005 inches. The 1.5748-inch diameter dial features a white, glare-free crystal face with a 0-4-0 reading scale and a scratch-resistant coating. An O-ring seal protects internal components from contamination, and the no-clutch structure with reversible measuring direction adds workflow flexibility. The titled face and universal holder make this kit suitable for a wide range of setup and inspection tasks performed by machinists, tool and die technicians, and metrology professionals.

This kit is well suited for horizontal indicator applications on machine tool setups, fixture inspection, runout checks, and surface alignment tasks in both production and maintenance environments. The included accessories cover common mounting and contact-point configurations, allowing the technician to configure the indicator for a variety of workholding and measurement scenarios without sourcing additional components. The high-sensitivity, quick-response mechanism supports repeatable readings in tight-tolerance work.

Key Features

• 0.016-inch measuring range with 0.0001-inch dial graduation for fine-resolution readings
• Accuracy of 0.0005 inches across the measuring range
• Horizontal indicator style with tilted face and 0-4-0 dial reading on a white, glare-free crystal
• No-clutch structure with reversible measuring direction for flexible setup
• O-ring seal and scratch-resistant coating for durability in shop environments
• 9-piece kit includes dial test indicator, 2 stems, 3 contact points, holding bar, knurled clamp ring, and swivel clamp

Compatibility

Designed as an OEM-specification horizontal dial test indicator kit within the Mitutoyo Series 513 product line. Accessories included are matched to the 513-443-10T indicator body.

Installation Notes

Installation and setup should be performed by a qualified machinist or metrology technician familiar with dial indicator mounting practices. Secure the indicator using the provided universal holder or swivel clamp before taking any readings, and verify zero calibration against a known reference surface. Do not overtighten clamping components, as excessive force can affect indicator accuracy and damage the stem. Always handle the contact points and crystal face with care to preserve measurement integrity.
