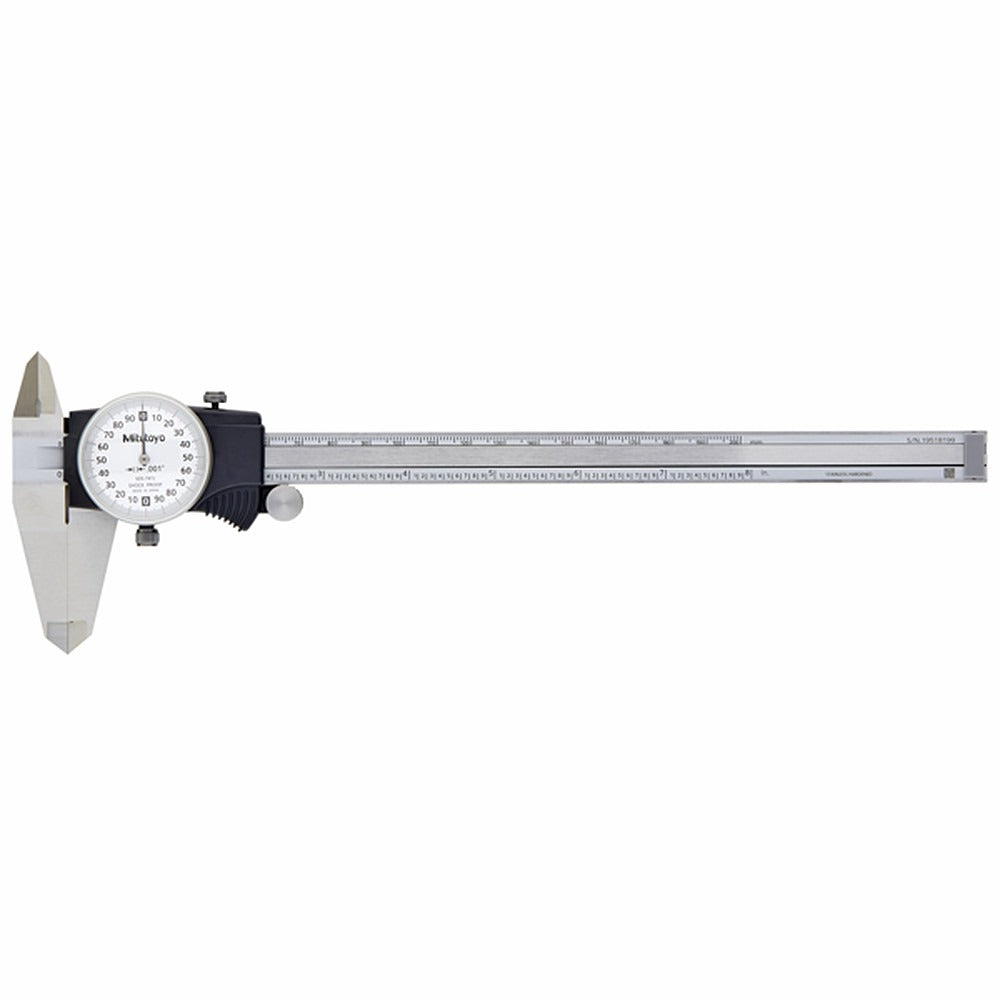

Mitutoyo 505-741J Dial Caliper 8 Inch Stainless Steel

Product Description

The MITUTOYO 505-741J is a stainless steel dial caliper designed for precise dimensional measurement in trade and industrial settings. It covers a full 8-inch measurement range with a dial graduation of 0.001 inches and an accuracy rating of 0.002 inches, making it suitable for demanding inspection work. The dial features a white face with a gray case and a titanium nitride coating on the measuring surfaces for added wear resistance. The jaw length is 1.9688 inches and the dial advances 0.2 inches per revolution. Machinists, pipefitters, HVAC technicians, and precision trade professionals typically use this instrument for layout, inspection, and quality-control tasks.

The 505-741J is well suited for shop-floor and field use where accurate inside, outside, depth, and step measurements are required. The sliding jaw adjustment provides smooth, consistent movement across the full range. The instrument ships in a fitted plastic case, which protects the caliper during storage and transport between job sites or service vehicles. It is a practical choice for any trade professional who needs a reliable dial caliper with a broad measurement range and a durable stainless steel build.

Key Features

• 8-inch measurement range with 0.001-inch dial graduation
• Accuracy rated at 0.002 inches per MITUTOYO proprietary inspection certification
• Measures outside, inside, depth, and step dimensions in a single tool
• Stainless steel body and jaws with titanium nitride coating for corrosion and wear resistance
• White dial face on gray case for high-contrast readability
• Supplied in a fitted plastic case for protection and storage

Compatibility

Designed as a general-purpose dial caliper suitable for use across HVAC, plumbing, machining, and mechanical trade applications where inch-based dimensional measurement is required.

Installation Notes

Dial calipers are precision instruments and should be handled by qualified trade professionals familiar with measurement tools. Before use, verify the caliper zeroes correctly with jaws fully closed. Keep the measuring surfaces clean and free of debris to maintain accuracy. Store the caliper in its fitted case when not in use to prevent damage to the dial mechanism and jaw faces.
