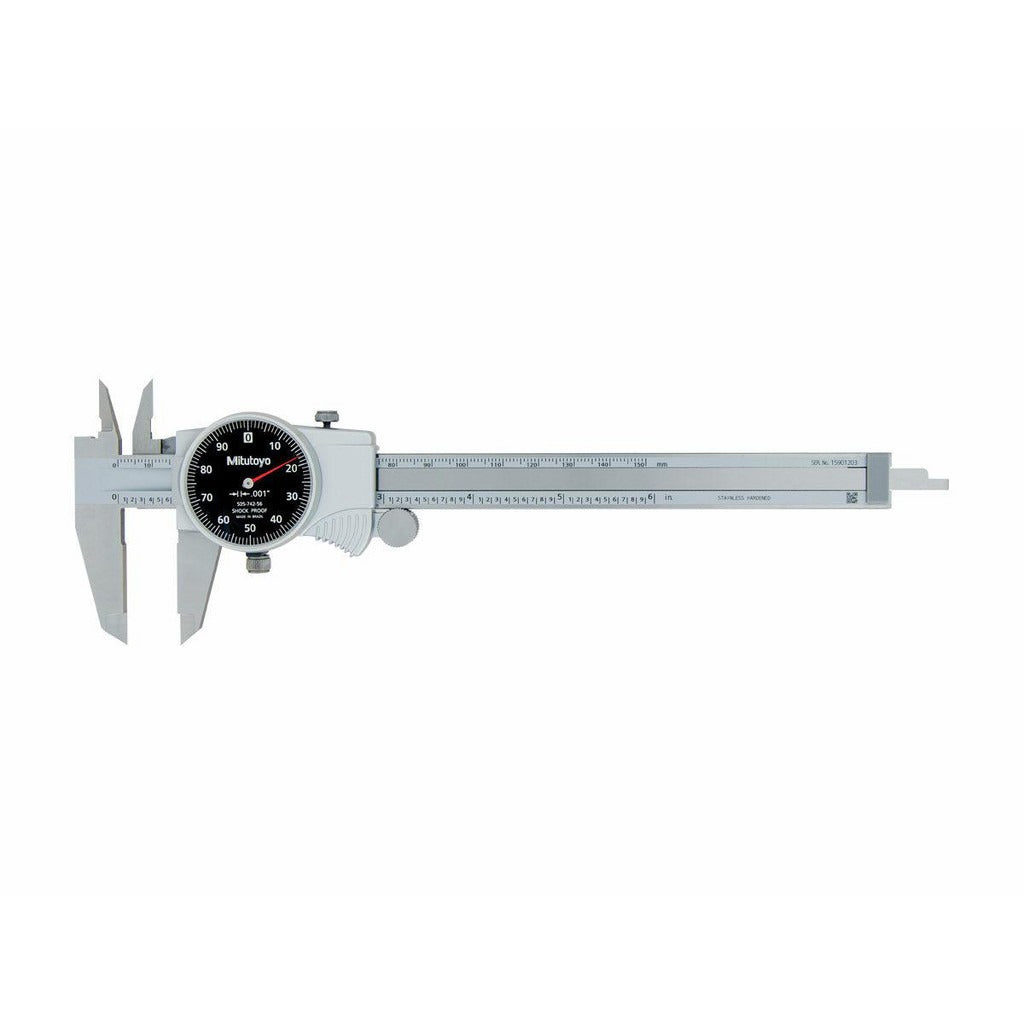

Mitutoyo 505-737 Dial Caliper 8 Inch Stainless Steel

Product Description

The MITUTOYO 505-737 is a precision dial caliper with an 8-inch measurement range and a dial graduation of 0.001 inches, making it a standard tool for dimensional inspection in trade and industrial settings. The caliper delivers an accuracy of 0.002 inches and advances 0.1 inches per full dial revolution. The body and beam are constructed from stainless steel with a titanium nitride coating for corrosion resistance and wear protection. Carbide-tipped jaws extend the service life of the measuring faces. The white dial face with a gray case provides clear readability in shop and field conditions. This caliper is supplied in a fitted plastic case and carries a proprietary inspection certification.

The 505-737 is suited for outside, inside, depth, and step measurements across a range of trade and manufacturing applications. With a jaw length of 1.9688 inches, it handles a variety of workpiece geometries. Typical users include machinists, pipefitters, HVAC technicians sizing components, and quality-control personnel performing dimensional verification on parts and assemblies. The sliding jaw adjustment allows fast repositioning across the full 8-inch span without tools.

Key Features

• 8-inch measurement range with 0.001-inch dial graduation and 0.002-inch accuracy
• Stainless steel body and beam with titanium nitride coating for corrosion and wear resistance
• Carbide-tipped jaws for extended measuring-face service life
• Performs outside, inside, depth, and step measurements in a single tool
• White dial face on gray case for high-contrast readability
• Supplied in a fitted plastic case; proprietary inspection certified

Compatibility

Designed as a general-purpose precision dial caliper for trade, inspection, and light manufacturing use where an 8-inch range and 0.001-inch resolution are required.

Installation Notes

No installation is required for this measuring instrument. Before use, verify the caliper zeroes correctly with jaws fully closed and the dial indicator reading zero. Keep the sliding surfaces clean and lightly lubricated per the manufacturer guidance. Store in the supplied fitted case when not in use to protect the measuring faces and dial mechanism.
