Mitutoyo 505-735 Dial Caliper 150mm 0.02mm Graduation

Product Description

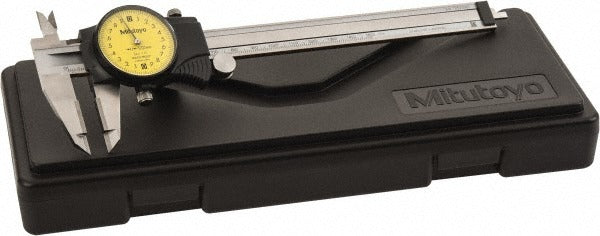

The MITUTOYO 505-735 is a dial caliper designed for precise dimensional measurement in workshop, manufacturing, and inspection environments. It covers a 150 mm measurement range with a 0.02 mm dial graduation and a 2 mm per revolution dial movement, delivering the resolution required for close-tolerance work. The jaws are carbide tipped for wear resistance and feature a titanium nitride coating and finish across the instrument body. A yellow-faced, black-case dial provides high contrast for quick, accurate readings. The tool is supplied in a fitted plastic case and carries a proprietary inspection certification. Machinists, quality technicians, and precision tradespeople are the primary users.

The 505-735 handles four measurement types in a single instrument: outside, inside, depth, and step measurements. The sliding jaw adjustment allows fast repositioning across the full 150 mm range. With a 40 mm jaw length (1-9/16 inches), the caliper is well suited to typical workpiece geometries found in general machining, HVAC component fabrication, pipe fitting inspection, and precision assembly work. It is appropriate for both production floor use and bench inspection applications where a calibrated, certified instrument is required.

Key Features

• 150 mm measurement range with 0.02 mm dial graduation and 2 mm per revolution dial movement
• Carbide tipped jaws for extended wear life under repeated use
• Titanium nitride coating and finish on instrument body for corrosion and abrasion resistance
• Yellow dial face on black dial case for high-contrast readability
• Four measurement modes: outside, inside, depth, and step
• Supplied in a fitted plastic case with proprietary inspection certification included

Compatibility

Designed as a general-purpose dial caliper suitable for use with standard metric measurement workflows across machining, fabrication, and inspection applications.

Installation Notes

No installation is required for this hand tool. Before use, verify the jaws close fully to zero and the dial reads zero; adjust the bezel if needed to zero the instrument. Keep jaw faces clean and free of debris before each measurement to maintain accuracy. Store the caliper in the supplied fitted case when not in use to protect the jaw tips and dial mechanism.
