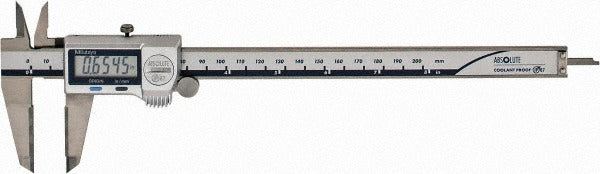

Mitutoyo 500-732-20 Electronic Caliper 8 Inch IP67

Product Description

The MITUTOYO 500-732-20 is a digital electronic caliper from the 500 ABSOLUTE Coolant-Proof series, built for precision measurement in demanding shop environments. It delivers a resolution of 0.0005 inches and an accuracy of 0.0010 inches across a full range of 8 inches (200 mm). The stainless steel body carries hardened stainless steel construction and carbide-tipped knife-edge jaws rated IP67 for protection against coolant, cutting fluid, and wash-down exposure. Licensed metrology technicians, machinists, and tool-room professionals rely on this caliper for fast, repeatable dimensional checks without removing parts from a wet or oily environment.

The 500-732-20 handles four measurement modes from a single tool: outside diameter, inside diameter, depth, and step measurement. The 1.9685-inch (50 mm) knife-edge jaws reach into tight bores and grooves where standard jaws cannot seat cleanly. A thumb-wheel provides fine jaw adjustment. This caliper suits general manufacturing, quality control inspection, and maintenance applications in both production and tool-room settings where coolant exposure is routine. It ships with a battery, a protective case, and dedicated inside-diameter jaws, making it ready for immediate use out of the box.

Key Features

• IP67-rated coolant-proof housing withstands direct fluid exposure and submersion to 1 meter
• 0.0005-inch resolution with 0.0010-inch accuracy over the full 8-inch range
• Carbide-tipped knife-edge jaws for inside and outside measurements in confined geometry
• Includes depth measurement rod and inside-diameter jaws for four measurement modes
• ABSOLUTE encoder retains origin setting after power loss — no re-zeroing on startup
• TUV Rheinland certified; powered by a single SR44 silver oxide battery included in the package

Compatibility

Designed as an OEM-style precision instrument in the MITUTOYO 500 ABSOLUTE Coolant-Proof series, suitable for standard metrology applications requiring an 8-inch (200 mm) range digital caliper with IP67 protection.

Installation Notes

No installation is required for handheld calipers. Before first use, verify the jaw faces are clean and the battery is properly seated per the included documentation. Store the caliper in the provided case when not in service to protect the jaw faces and scale. Calibration to a traceable standard should be performed according to your facility quality plan; this unit ships uncalibrated.
