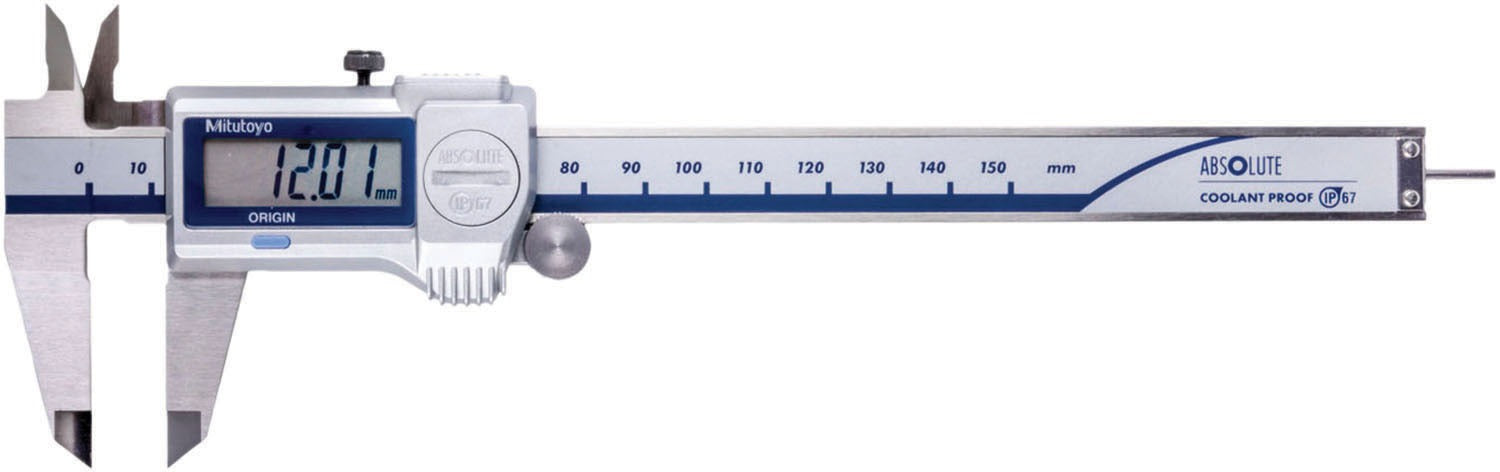

Mitutoyo 500-719-20 Electronic Caliper 150mm IP67

Product Description

The MITUTOYO 500-719-20 is a digital electronic caliper from the 500 ABSOLUTE Coolant-Proof series, designed for precision dimensional measurement in demanding shop environments. Built with a stainless steel beam and knife-edge jaws, this caliper measures outside diameter, inside diameter, depth, and step in a single instrument. The IP67 rating means it is fully protected against dust ingress and temporary submersion, making it reliable on wet or coolant-exposed surfaces. A thumb wheel provides fine jaw adjustment, and the ABSOLUTE encoder eliminates the need to zero the tool on startup. Battery power is supplied by one SR44 silver oxide cell, included in the package.

This caliper is suited for use in precision machining, fabrication, quality control, and inspection applications where coolant exposure is common. It is appropriate for both shop floor measurement and tool crib use. Machinists, quality technicians, and tool-and-die professionals rely on this series for repeatable, high-accuracy measurements across multiple feature types without switching instruments. The 40mm jaw length accommodates a wide range of workpiece geometries.

Key Features

• IP67-rated for dust-tight and temporary immersion protection in coolant-heavy environments
• Measures outside diameter, inside diameter, depth, and step from a single tool
• Stainless steel beam and jaw construction for corrosion resistance and long service life
• Knife-edge jaw style for accurate measurement on chamfers, slots, and small features
• ABSOLUTE encoder retains position on power-off, eliminating manual zero reset
• Data output capability for SPC and quality system integration
• Includes battery, caliper, and protective case

Compatibility

Designed as an OEM-specification digital caliper within the MITUTOYO 500 ABSOLUTE Coolant-Proof series, suitable for general precision measurement applications requiring IP67 environmental protection and a 150mm measurement range.

Installation Notes

No installation is required for handheld measurement tools of this type. Before use, ensure the jaws are clean and fully closed, then confirm the zero reading per standard metrology practice. When connecting to a data output system, follow the instrument manufacturer wiring and interface guidance to avoid damage to the data port. Store the caliper in its included case when not in use to protect the measuring surfaces and electronics.
