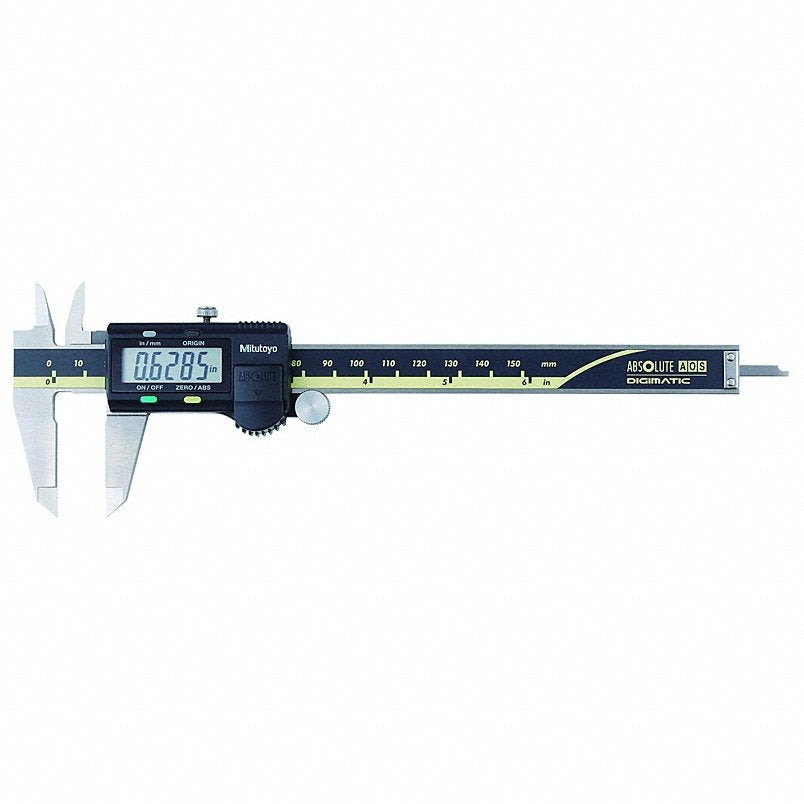

Mitutoyo 500-196-32 Digital Caliper 0 to 6 in

Product Description

The MITUTOYO 500-196-32 is a 4-way digital caliper designed for general-purpose dimensional measurement in shop, field, and inspection environments. It measures outside, inside, depth, and step dimensions across a range of 0 to 6 inches (0 to 150 mm) with a resolution of 0.0005 inches (0.01 mm) and an accuracy of +/- 0.0010 inches. The caliper uses an electrostatic capacitance linear encoder and an absolute positioning system, eliminating the need to return to zero after power-off. The stainless steel jaws and body provide durability in light industrial use. A thumb wheel drive allows precise jaw control. The LCD display shows inch or metric readings and switches between the two modes with a single function button.

This caliper is intended for general measurement work where SPC (statistical process control) data output is not required. It is a cost-effective option for technicians, machinists, inspectors, and tradespeople who need accurate hand-tool measurement without automated data logging. Typical applications include part verification, layout work, and incoming inspection in manufacturing, HVAC fabrication, plumbing, and mechanical service environments. The included Certificate of Inspection and carrying case make it suitable for calibrated toolroom use as well.

Key Features

• 4-way measurement: outside, inside, depth, and step in a single tool
• Absolute positioning system retains the measurement origin after power cycling
• Resolution of 0.0005 inches / 0.01 mm with +/- 0.0010 inch accuracy
• Inch/metric switchable display via dedicated function button
• Stainless steel jaws and caliper body for wear resistance
• Includes Certificate of Inspection, SR44 battery, and plastic carrying case
• Locking nut included for holding jaw position during transfer measurements

Compatibility

Designed as a general-purpose hand-tool digital caliper suitable for any application requiring 0 to 6 inch (0 to 150 mm) outside, inside, depth, or step measurements without SPC data output.

Installation Notes

No installation is required for this hand-held measuring tool. Insert the included SR44 battery before first use and confirm the display reads zero with jaws fully closed, using the Zero or Origin-Set function if needed. Avoid exposing the caliper to coolants or water, as this model is not rated for coolant resistance or IP protection. Store in the included case when not in use to protect the measuring faces and encoder surfaces.

Technical Specifications

• Measurement Range (Inch): 0 to 6 inches
• Measurement Range (Metric): 0 to 150 mm
• Accuracy: +/- 0.0010 inches
• Resolution: 0.0005 inches / 0.01 mm
• Repeatability: 0.0005 inches / 0.01 mm
• Dimension Type: Inch/Metric
• Linear Encoder Type: Electrostatic Capacitance
• Absolute Positioning: Yes
• Display Type: LCD
• Jaw Material: Stainless Steel
• Caliper Material: Stainless Steel
• Jaw Depth (Lower Jaw): 1-37/64 inches
• Jaw Depth (Upper Jaw): 2-9/64 inches
• Jaw Shape: Standard
• Jaw Actuation Type: Thumb Wheel
• Depth Rod Shape: Rectangular
• Case Type: Plastic Case
• Battery Size: SR44
• SPC Output: No
• Data Output Type: Cabled
• Dust Resistant: Yes
• Coolant Resistant: No
• Water Resistant: No
• IP Rating: Not Rated
• Locking Nut: Yes
• Includes Battery: Yes
• Includes Case: Yes
• Included Certification: Certificate of Inspection
• Country of Origin: Japan (subject to change)
• UNSPSC: 41111621

Standard Information

• Brand: MITUTOYO
• Manufacturer Part Number: 500-196-32
