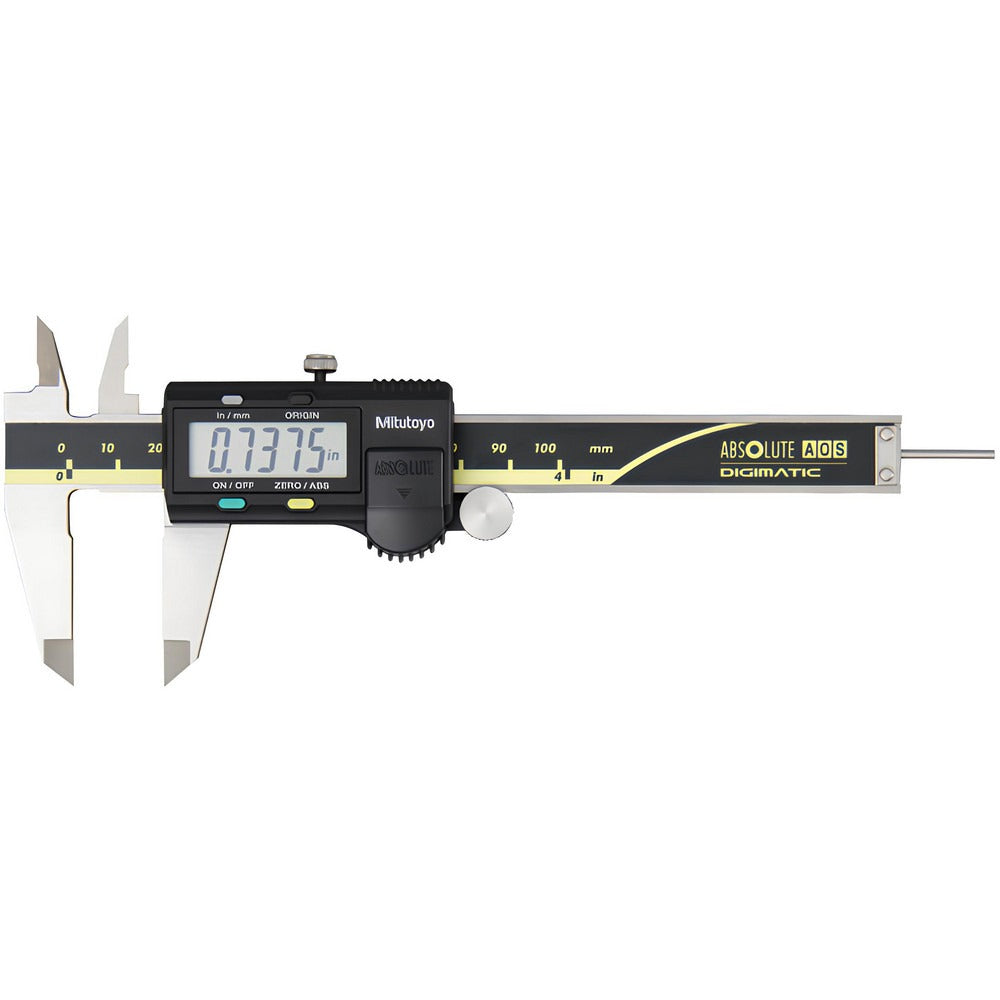

Mitutoyo 500-195-30 Electronic Caliper 0-4 in Stainless Steel

Product Description

The MITUTOYO 500-195-30 is a battery-powered electronic digital caliper with a measurement range of 0 to 4 inches (0 to 100 mm) and a resolution of 0.0005 inches (0.01 mm). Accuracy is rated at 0.0010 inches (0.02 mm). The caliper body and jaws are constructed from hardened stainless steel, providing durability in shop and field environments. It is designed for machinists, tool-and-die technicians, quality control inspectors, and precision trade professionals who need fast, reliable dimensional measurements without the need for SPC data output.

The 500-195-30 is suited for general-purpose precision measurement in manufacturing, maintenance, and inspection applications. Its inside and outside jaw configuration, combined with a depth measurement rod, allows a single tool to handle outside diameter, inside diameter, depth, and step measurements. The jaw length is 40 mm, and the overall length of the tool is 182 mm. It operates on a single SR44 silver oxide battery, which is included along with a protective case.

Key Features

• Measurement range: 0 to 4 inches (0 to 100 mm)
• Resolution of 0.0005 inches (0.01 mm) for precise dimensional readings
• Hardened stainless steel body and jaws for corrosion resistance and long service life
• Inside and outside jaw style with integrated depth measurement rod
• Sliding and thumb wheel jaw adjustment for fast, controlled positioning
• TUV Rheinland certified; part of the Mitutoyo Series 500 line
• Includes SR44 silver oxide battery and protective carrying case

Compatibility

The MITUTOYO 500-195-30 is part of the Series 500 electronic caliper line and is designed for standard precision measurement applications including outside diameter, inside diameter, depth, and step measurements up to 4 inches.

Installation Notes

No installation is required for this handheld measuring instrument. Before use, confirm the battery is seated correctly and zero the caliper with jaws fully closed. Keep the measuring surfaces clean and free of chips or debris to maintain accuracy. Store in the included case when not in use to protect the sliding surfaces and digital display.
