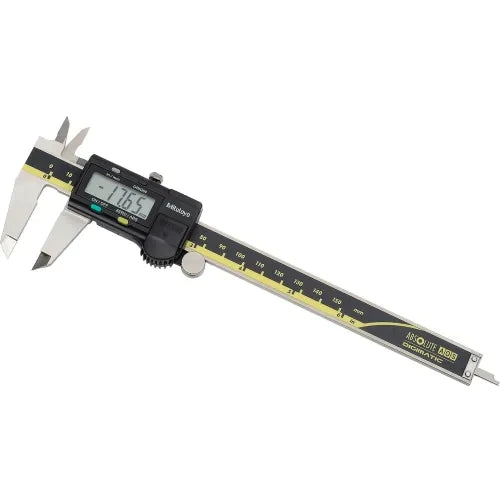

Mitutoyo 500-171-32 AOS Absolute Digimatic Caliper SR44 battery (0 to 6 in / 150 mm) Replacement 500-171-30

Product Description

Mitutoyo 500-171-32 is an AOS Absolute Digimatic caliper that provides digital measurements with SPC data output across a 0 to 6 in (0 to 150 mm) range. It measures outside, inside, depth and step dimensions using an ABSOLUTE linear encoder and an AOS electromagnetic inductive sensor. The tool features an LCD readout with Origin and Zero/ABS functions, SR44 battery power, and is supplied with a fitted carrying case and manual.

• AOS electromagnetic inductive sensor and ABSOLUTE linear encoder for resistance to dirt, oil and water
• Resolution 0.0005 in (0.01 mm), accuracy ±0.001 in, and SPC data output for statistical process control
• Hardened stainless steel construction, LCD display with Origin/Zero functions, SR44 battery (approx. 3.5 years), fitted case included

Product Highlights

0–150 mm range, 0.01 mm resolution, SPC data output, ABSOLUTE encoder, SR44 battery

Product Information

Standard Information

• Brand: MITUTOYO
• Manufacturer Part Number: 500-171-32

Technical Specifications

• Brand: Mitutoyo
• Manufacturer Part Number: 500-171-32
• Model: 500-171-32
• Measuring Range: 0 to 6 in (0 to 150 mm)
• Resolution: 0.0005 in (0.01 mm)
• Accuracy: ±0.001 in
• Repeatability: 0.0005 in (0.01 mm)
• Display: LCD
• Length Standard: ABSOLUTE electrostatic capacitance type
• Sensor Type: AOS electromagnetic inductive sensor
• Max Response Speed: Unlimited
• Battery Type: SR44 (1 pc.)
• Battery Life: Approximately 3.5 years under normal use
• Data Output: SPC (statistical process control) data output supported
• Material: Hardened stainless steel
• Functions: Origin set, Zero/ABS, inch/mm conversion, data output
• Included Items: SR44 battery, fitted carrying case, manual
• Replacement For: 500-171-30
• Optional Accessories: 959149 SPC cable with data switch (1 m), 959150 SPC cable with data switch (2 m), 959143 data hold unit
