Mitutoyo 314-362-30 Electronic V Anvil Micrometer

Product Description

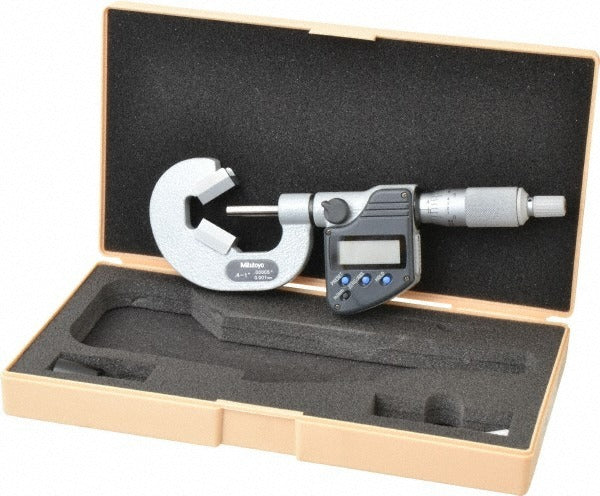

The MITUTOYO 314-362-30 is an electronic V anvil micrometer designed to measure the diameter of 3-flute cutting tools such as end mills, reamers, and drill bits. It covers a measurement range of 0.4 to 1 inch with a resolution of 0.0001 inch and an accuracy of 0.0002 inch (4 micrometers). The V-shaped anvil seats against two flutes while the spindle contacts the third, enabling true outer diameter measurement on odd-flute tooling. Both the anvil and spindle are carbide-faced for durability and wear resistance. A ratchet stop thimble provides consistent measuring force. The instrument includes data output capability, allowing readings to be transmitted to a compatible data collection system or SPC software. Installed and used by machinists, toolroom technicians, and quality control professionals.

This micrometer is suited for precision measurement applications in machine shops, tool and die operations, and quality assurance environments. It is used wherever accurate diameter measurement of 3-flute cutting tools is required, including incoming inspection of new tooling and wear verification of tools in service. The satin chrome finish reduces glare under shop lighting. The instrument is powered by a SR44 battery and reads in inch or millimeter graduations.

Key Features

• Measurement range of 0.4 to 1 inch with 0.0001 inch resolution
• Accuracy of 0.0002 inch (4 micrometers) for reliable precision measurement
• V anvil geometry designed specifically for 3-flute cutting tool measurement
• Carbide anvil and spindle faces resist wear and extend service life
• Ratchet stop thimble ensures repeatable measuring force across readings
• Data output port supports connection to SPC or data collection systems
• Satin chrome finish minimizes glare in production and inspection environments

Compatibility

Designed for diameter measurement of 3-flute cutting tools within a 0.4 to 1 inch measurement range. Consult Mitutoyo documentation for compatible data output cables and SPC interface accessories.

Installation Notes

This instrument requires no installation in the traditional sense but should be handled and stored per standard precision metrology practices. Calibrate or verify against a known standard before use and periodically thereafter. Keep the measuring faces clean and free of chips or coolant residue before each measurement. Battery replacement should be performed with the instrument powered off, using a SR44 cell.
