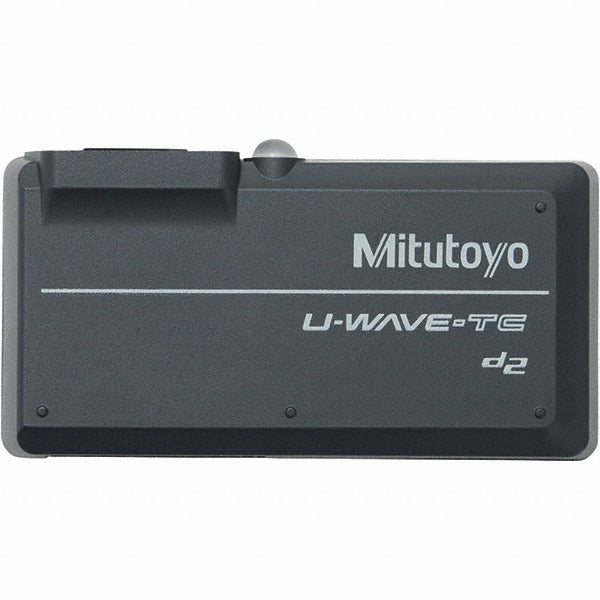

Mitutoyo 264-620 Spc Wireless Transmitter

Product Description

The MITUTOYO 264-620 is an SPC wireless transmitter designed to send measurement data from compatible digital calipers to a PC or data collection system without a physical cable connection. Operating at an approximate transmission range of 20 meters, it enables technicians and machinists to record dimensional readings in real time while keeping the work area free of tethered connections. The transmitter pairs with IP67-rated and standard digital calipers, making it a practical add-on for quality control environments where data logging and SPC analysis are part of the workflow. It weighs approximately 0.5 pounds and fits within a compact footprint suitable for bench and floor-level inspection stations.

This transmitter is suited for dimensional inspection and quality assurance applications in manufacturing, metrology labs, and machine shops. It supports Statistical Process Control workflows by wirelessly transmitting caliper readings directly into data collection software, eliminating transcription errors and manual data entry. The 264-620 is appropriate for both production-floor environments and controlled inspection rooms where cable management is a concern.

Key Features

• Approximate 20 meter wireless transmission range for flexible positioning at the measurement station
• Compatible with IP67-rated calipers for use in coolant-present or washdown environments
• Also compatible with standard digital calipers for general-purpose dimensional inspection
• Supports SPC data collection by transmitting live measurement values wirelessly to a receiving system
• Compact form factor at 4 inches long, 3 inches wide, and 1 inch tall
• Lightweight at 0.5 pounds for easy handling and mounting flexibility

Compatibility

Designed for use with MITUTOYO IP67 Calipers and Standard Calipers as specified by the manufacturer.

Installation Notes

Installation is typically performed by a metrologist, quality technician, or instrumentation specialist familiar with SPC data collection systems. Power down or disconnect any active data collection session before pairing the transmitter to a receiver or host system. Consult the MITUTOYO installation guide for pairing procedures and receiver configuration. Do not expose the transmitter to environments beyond its rated operating conditions, and ensure the receiving hardware is positioned within the 20 meter transmission range for reliable data capture.
