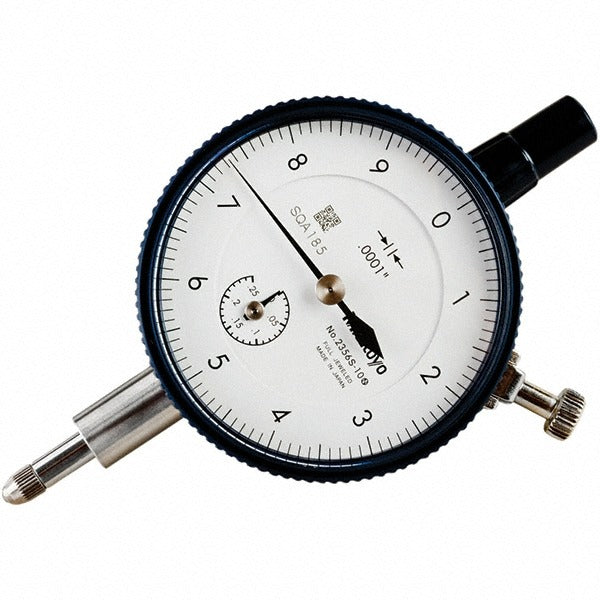

Mitutoyo 2356A-10 Dial Drop Indicator 0.25 in Range

Product Description

The MITUTOYO 2356A-10 is a dial drop indicator designed for precision dimensional inspection in toolroom, machining, and quality control environments. It delivers a measurement range of 0.25 inches with a dial graduation of 0.0001 inches per division and a range of 0.01 inches per revolution, making it suitable for high-resolution comparative measurements. The lug back mounting style allows secure attachment to indicator holders and magnetic bases. Accuracy is rated at 0.0001 inches. A built-in revolution counter tracks cumulative travel across the full 0.25-inch range. This instrument is installed and used by machinists, metrologists, and quality technicians.

The MITUTOYO 2356A-10 is used in precision measurement applications including runout inspection, surface flatness checks, and part-to-part comparative gauging. The 57 mm white dial face provides clear readability under shop lighting. The 3/8-inch stem diameter fits standard indicator holders and fixture arms commonly found in machine shops and inspection departments. It is suited for both bench inspection setups and on-machine measurement tasks requiring fine resolution and repeatable results.

Key Features

• 0.25-inch total measurement range with 0.0001-inch graduation for high-resolution readings
• Jeweled bearing construction for smooth spindle travel and long service life
• Lug back mounting for compatibility with standard indicator holders and magnetic bases
• Built-in revolution counter tracks total travel across the full range
• 57 mm white dial face for clear, high-contrast readability
• Meets ANSI/AGD standards for dial indicator performance

Compatibility

Designed as an OEM-style drop indicator compatible with standard 3/8-inch stem indicator holders, magnetic base arms, and fixture-mounted gauge setups used in toolroom and quality control applications.
