Product Description

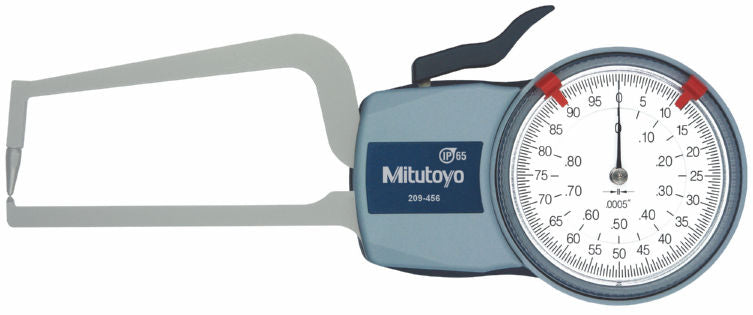

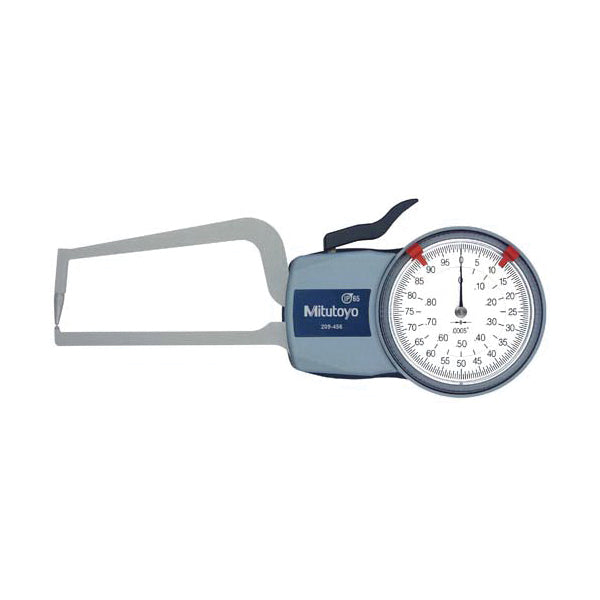

The Mitutoyo 209-456 is a dial caliper gage that measures from zero to eighty in inches. This gage is built by Mitutoyo, a well-known brand in precision measurement tools. It features an accuracy of plus or minus 0.0015 inches, making it reliable for various measuring tasks.
- Range is from 0 to 0.80 inches.
- Graduation resolution is 0.0005 inches.
- Max measuring depth reaches 3.2000 inches.
Product Highlights
This dial caliper is designed for precision in various fields like metalworking and machining. The analog display provides clear readings, and the measuring contacts allow for accurate measurements in many applications.
Product Information
Standard Information
-
Brand: Mitutoyo
-
MPN: 209-456
Technical Specifications
-
Range: 0 to 0.80 inches
-
Accuracy: +/- 0.0015 inches
-
Graduation/Resolution: 0.0005 inches
-
Max Measuring Depth: 3.2000 inches
-
Upper Measuring Contact Length: 0.9700 inches
-
Lower Measuring Contact Length: 0.1000 inches
-
Type of Measuring Contact: RK/K (1.5 mm tip diameter)
-
Max Groove Depth: 0.9700 inches
-
Min Groove Depth: 0.1000 inches
