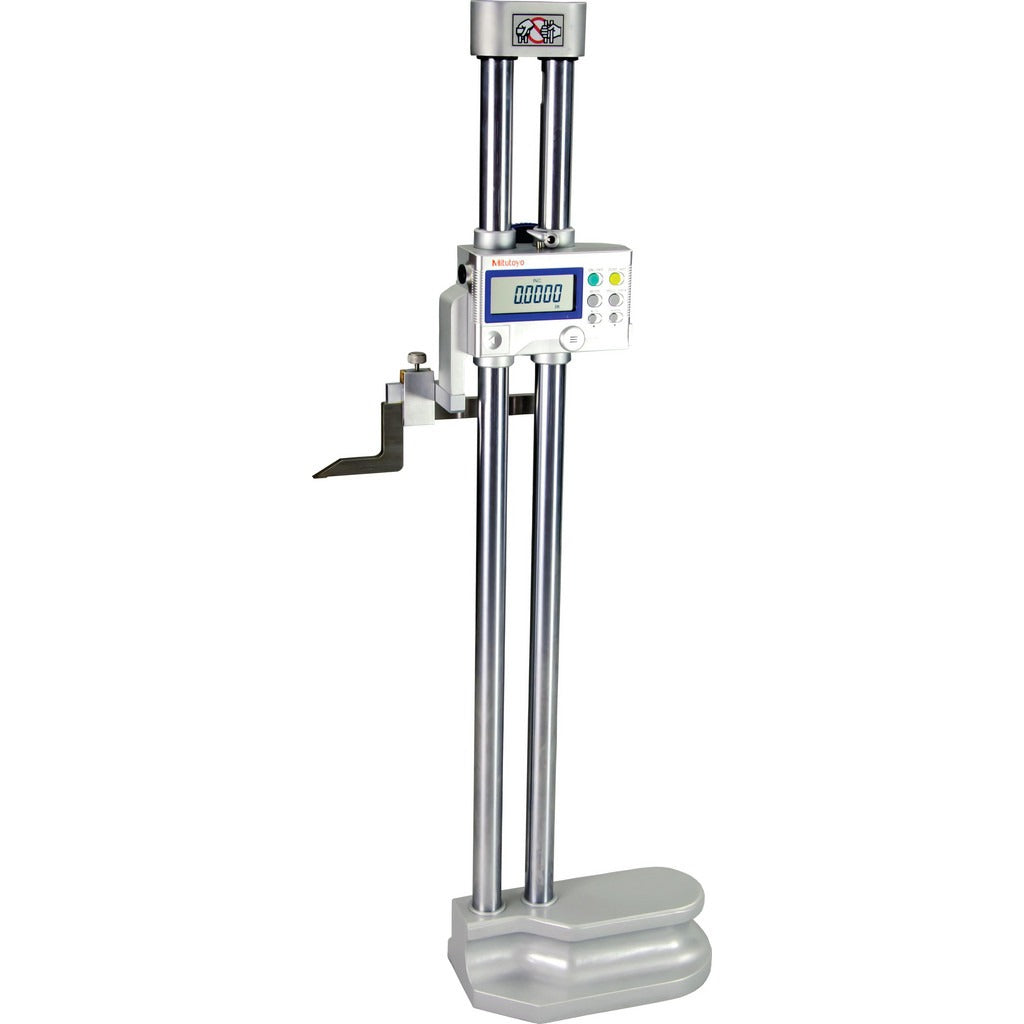

Mitutoyo 192-671-10 Electronic Height Gage 18 in

Product Description

The MITUTOYO 192-671-10 is a digital electronic height gage designed for precision layout and measurement work on surface plates. It delivers a maximum measurement range of 18 inches (450 mm) with an accuracy of 0.0015 inches (0.030 mm) and a selectable resolution of 0.0005 or 0.001 inches (0.005 or 0.01 mm in metric mode). The large LCD makes readings easy to capture in shop-floor conditions. A scriber is included for direct layout work. This instrument is used by machinists, quality technicians, and tool room professionals who require repeatable, traceable measurements on flat reference surfaces.

The 192-671-10 is suited for dimensional inspection and precision layout in machine shops, tool rooms, and quality control environments. The inclined slider handle and coarse/fine feeding switch support controlled stylus positioning during measurement. ABS/INC switching allows the user to work in absolute or incremental modes, and the inch/mm conversion button removes the need to recalculate between unit systems. Data output capability makes this gage compatible with SPC data collection setups commonly used in production inspection workflows.

Key Features

• Maximum measurement range of 18 inches (450 mm)
• Selectable resolution: 0.0005 inches or 0.001 inches (0.005 mm or 0.01 mm)
• Accuracy of 0.0015 inches (0.030 mm)
• Large LCD with clearly labeled function buttons for fast operation
• ABS/INC switching, inch/mm conversion, zero setting, and data hold functions
• Data output port supports external SPC or data logging systems
• Scriber included; powered by one SR44 battery (included)

Compatibility

Designed for use on standard granite or cast iron surface plates as a freestanding electronic height gage for dimensional layout and inspection applications.

Installation Notes

Place the gage on a clean, level surface plate before use. Calibrate or zero the instrument at the reference datum surface prior to taking measurements. Handle the scriber and slider with care to avoid contact damage to the measuring faces. Data output connections should follow the interface specifications of the receiving device or SPC system.
