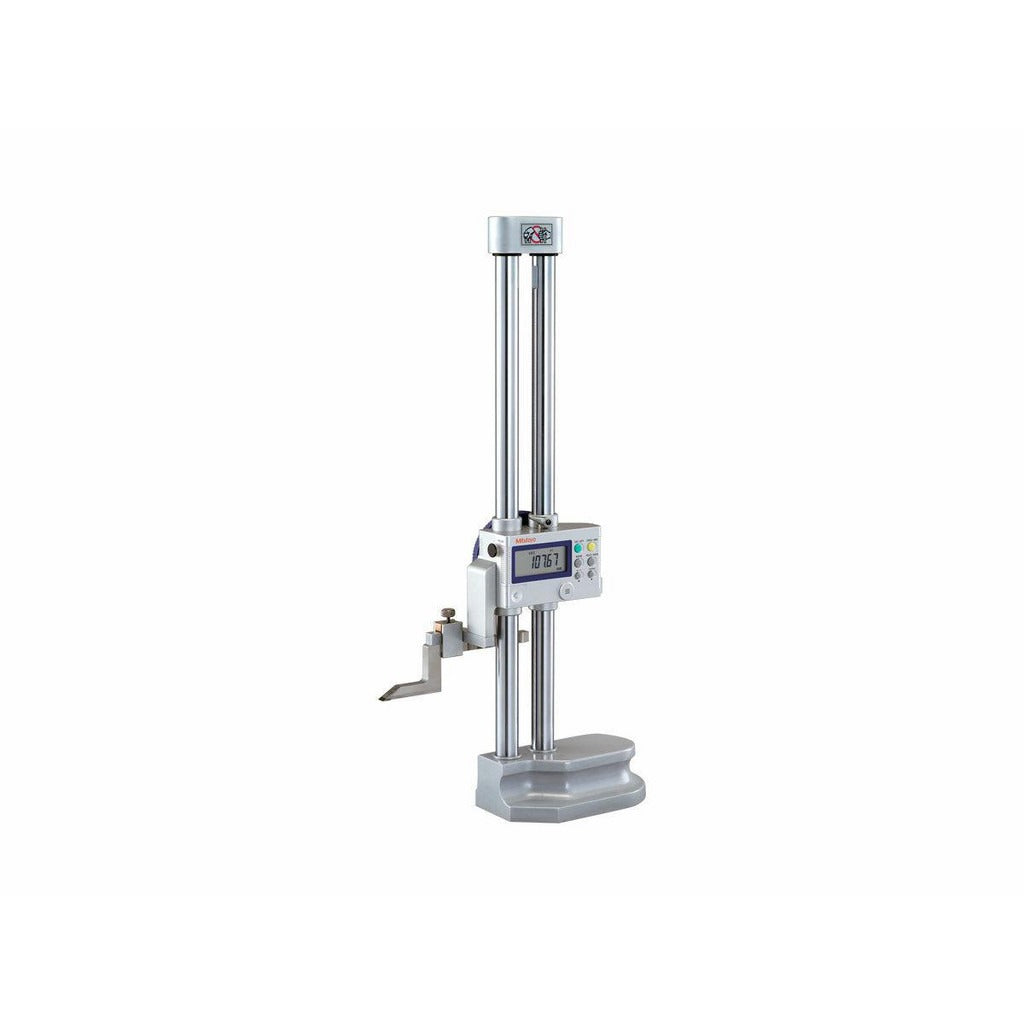

Mitutoyo 192-670-10 Electronic Height Gage 12 in

Product Description

The MITUTOYO 192-670-10 is an electronic height gage designed for precise vertical measurement in metrology, inspection, and layout work. It offers a maximum measuring range of 12 inches (300 mm) with an accuracy of 0.001 inches (0.025 mm). The large LCD display provides clear readout in either inch or millimeter modes, and a coarse/fine feeding switch supports both fast positioning and fine adjustment. Licensed machinists, quality control technicians, and tool room professionals use this instrument for surface plate inspection, part layout, and dimensional verification tasks.

This height gage is suited for use in inspection rooms, tool rooms, and manufacturing quality labs where surface plate work is common. The inclined slider handle and large function buttons improve operator control during repetitive measurement cycles. It is appropriate for both single-piece inspection and production-line dimensional checks in industrial environments. The unit ships with a scriber included for direct layout marking on workpieces.

Key Features

• 12-inch (300 mm) maximum measurement range with 0.001-inch accuracy
• Dual resolution settings: 0.005 microns and 0.010 microns selectable
• Large LCD with inch/mm conversion, ABS/INC switching, and data hold
• Coarse/fine feeding switch for fast traverse and precise fine adjustment
• Plus/minus switching and two preset memory positions for comparative measurement
• Data output port for connection to external data collection systems
• Includes scriber; powered by one SR44 battery (included)

Compatibility

Designed as a precision electronic height gage for use on standard surface plates in metrology and inspection applications. Specific system or instrument compatibility was not stated in the product data.

Installation Notes

This instrument is used by metrology technicians and quality control personnel on clean, flat surface plates. Before use, verify the surface plate is clean and the gage base is free of debris that could affect zeroing. Zero the instrument on the surface plate reference surface before taking measurements. Battery replacement uses a standard SR44 cell; follow the manufacturer documentation for battery access and replacement procedure.
