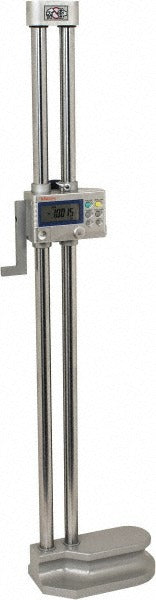

Mitutoyo 192-632-10 Electronic Height Gage 24 in

Product Description

The MITUTOYO 192-632-10 is a digital electronic height gage with a 24-inch (600 mm) maximum measurement range and an accuracy of 0.002 inches (0.050 mm). It features a switchable resolution of 0.0005 or 0.0002 inches for flexible precision work. A large LCD display presents readings clearly, and an SPC data output port allows direct connection to statistical process control systems or data loggers. The gage ships with a scriber and one SR44 battery included. This instrument is designed for use by machinists, quality control technicians, and tool-and-die professionals who require reliable surface-plate layout and inspection measurements.

The 192-632-10 is suited for dimensional inspection on surface plates in machine shops, manufacturing floors, and quality labs. Its inch/mm conversion, ABS/INC switching, and dual preset functionality make it practical for both layout work and repetitive inspection routines. The inclined slider handle and coarse/fine feeding switch allow controlled stylus positioning during measurement. The instrument is appropriate for both job-shop and production inspection environments where electronic height gages are standard practice.

Key Features

• 24-inch (600 mm) maximum measurement range for large workpieces
• Switchable resolution: 0.0005 inches or 0.0002 inches to suit the required precision level
• SPC data output port for direct interface with data collection systems
• Inch/mm conversion and ABS/INC switching built in
• Coarse/fine feeding switch and inclined slider handle for controlled stylus placement
• Data hold, zero setting, and dual preset functions for efficient workflow
• Large LCD characters for easy reading under shop-floor lighting

Compatibility

Designed as an OEM-specification MITUTOYO electronic height gage for use on standard granite or cast-iron surface plates in precision measurement applications.

Installation Notes

Electronic height gages are set up and operated by machinists or quality control technicians on a clean, level surface plate. Before use, allow the gage and workpiece to thermally stabilize in the measurement environment to minimize thermal expansion error. Install the included SR44 battery according to the compartment markings before first use. Handle the scriber and column with care to avoid impact damage that can affect accuracy and calibration.
