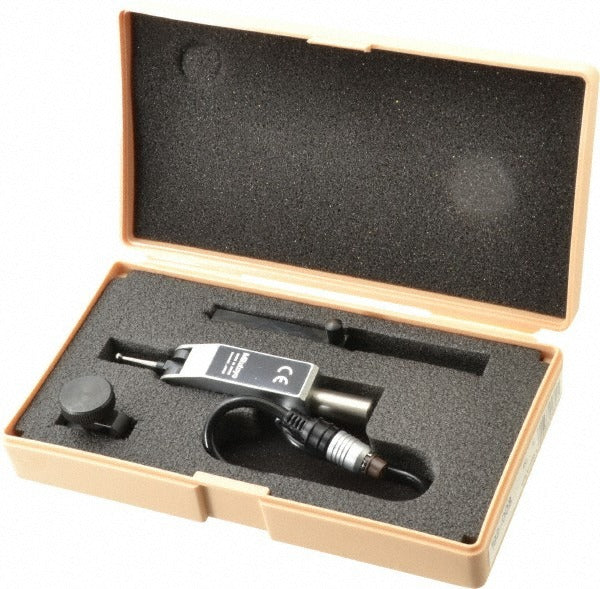

Mitutoyo 192-008 Bi-directional Touch Height Gage Probe

Product Description

The MITUTOYO 192-008 is a bi-directional touch probe designed for use with Mitutoyo Digimatic Height Gages in the Series 192 lineup. It enables height gage measurements in both upward and downward stylus contact directions, expanding the measurement capability of compatible height gages beyond standard single-direction probing. Weighing 5 pounds, this probe is built for bench-top metrology environments where precise vertical measurement is critical. It is installed and used by quality control technicians, machinists, and metrologists working in manufacturing, tool rooms, and inspection labs.

This probe is suited for surface plate inspection work where parts require measurement from multiple surfaces or features at varying heights. It attaches directly to compatible Mitutoyo Series 192 Digimatic Height Gages, allowing the gage to capture data from both the top and bottom faces of a workpiece feature without repositioning the part. This capability is especially useful in dimensional inspection of grooves, undercuts, and stepped features.

Key Features

• Bi-directional stylus contact allows upward and downward measurement from a single setup
• Designed specifically for Mitutoyo Digimatic Height Gages Series 192
• Enables dimensional inspection of grooves, undercuts, and stepped part features
• Supports precise vertical measurement in bench-top and surface plate applications
• Direct OEM-compatible fit eliminates the need for adapters or modifications

Compatibility

Designed for use with Mitutoyo Digimatic Height Gages Series 192.

Installation Notes

Installation is performed by qualified metrology technicians or machinists familiar with height gage accessories. Before attaching or removing the probe, ensure the height gage is powered down and the stylus arm is in a stable, supported position to prevent accidental drops or damage to the contact point. Follow the height gage manufacturer instructions for probe attachment and verify secure seating before taking measurements.
