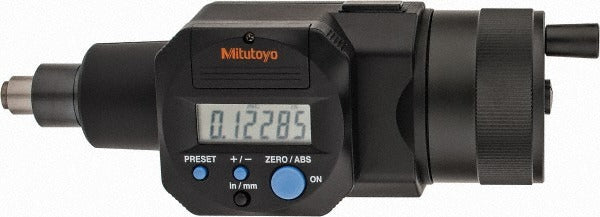

Mitutoyo 164-164 Electronic Micrometer Head Flat Spindle

Product Description

The MITUTOYO 164-164 is an electronic micrometer head with a flat spindle, designed for precision measurement and integration into machinery and measuring instruments. It covers a measuring range of 0 to 50.8mm with a resolution of 0.00005 inches and an accuracy of 0.00015 inches, making it suitable for high-precision dimensional measurement tasks. The spindle is non-rotating and features a carbide measuring face for durability and consistent contact. Data output capability allows the 164-164 to feed measurement readings directly to external devices or data collection systems. Licensed metrologists, toolmakers, and precision metrology technicians are the primary installers and users of this head.

This micrometer head is intended for use in precision measurement setups, custom gauging fixtures, automated inspection equipment, and benchtop measuring instruments in both industrial and laboratory environments. Its flat spindle geometry suits applications where the measuring face must contact a flat or delicate workpiece surface without marring it. The spindle length of 79mm and overall length of 220mm accommodate a range of fixture integration scenarios. Two SR44 batteries are included, enabling immediate use upon installation.

Key Features

• Measuring range of 0 to 50.8mm with 0.00005-inch resolution for high-precision applications
• Flat spindle profile with carbide measuring face for durability and consistent surface contact
• Non-rotating spindle prevents workpiece marring during measurement
• Data output port enables integration with SPC systems and external data collection devices
• Designed for integration into machinery and custom measuring instruments
• Includes two SR44 batteries for immediate use

Compatibility

Designed for integration into precision measurement fixtures, automated gauging systems, and benchtop measuring instruments requiring a 0 to 50.8mm range electronic micrometer head with flat spindle geometry.

Installation Notes

Installation is typically performed by metrology technicians or toolmakers integrating this head into custom fixtures or precision instruments. Ensure any host machine or instrument is powered down before mounting the micrometer head. Secure the head using the appropriate clamping method for the fixture, taking care not to overtighten against the spindle sleeve. Consult the host instrument documentation and applicable workplace calibration standards before placing the unit into service.
