Mitutoyo 1507A Dial Drop Indicator 0.125in Range

Product Description

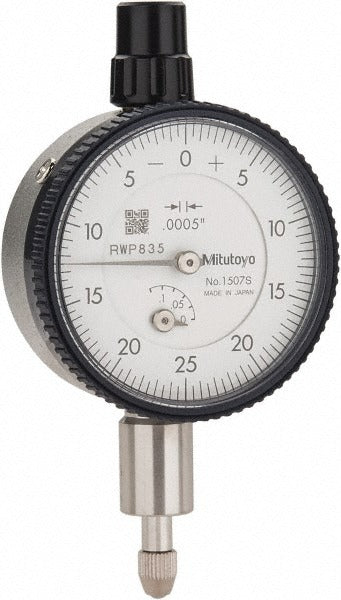

The MITUTOYO 1507A is a dial drop indicator designed for precision measurement in machining, tooling, and metrology applications. With a 0.125 inch measuring range and a 0.0005 inch graduation, it delivers fine resolution suitable for runout checks, surface parallelism, and workpiece alignment. The 0-25-0 bidirectional dial face allows easy reading of deviation in either direction. The lug back mount keeps the indicator secure in standard indicator holders and fixtures. A built-in revolution counter tracks cumulative displacement across the full range. This instrument is used by machinists, tool-and-die technicians, and quality control inspectors.

The 1507A suits bench setups, surface plate inspection, machine tool alignment, and fixture verification in both job shop and production environments. Its compact 1-5/8 inch diameter white dial provides clear readability in tight workspaces. The 0.375 inch stem diameter fits standard indicator holders and magnetic base clamps. With ANSI/AGD Group 1 compliance, it meets the dimensional and performance standards expected in precision metrology work.

Key Features

• 0.125 inch measuring range with 0.0005 inch graduation for fine-tolerance inspection
• 0-25-0 bidirectional dial reading for direct deviation measurement in both directions
• Revolution counter tracks total displacement across the full range
• Lug back mount for secure fixture in standard indicator holders
• 1-5/8 inch white dial face for clear, high-contrast readability
• ANSI/AGD Group 1 compliant for standardized metrology use

Compatibility

Designed as an OEM-style precision drop indicator compatible with standard 0.375 inch stem diameter indicator holders, magnetic bases, and surface gauge fixtures conforming to ANSI/AGD Group 1 specifications.

Installation Notes
