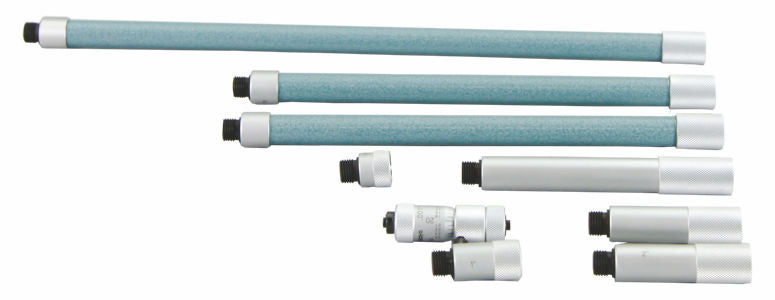

Mitutoyo 137-214 Tubular Inside Micrometer Set 2 to 40 in Range 0.001 in Graduations

Product Description

The Mitutoyo 137-214 Tubular Inside Micrometer Set offers precise internal measurements. This set ranges from two inches to forty inches with graduation at one thousandth of an inch. The measuring faces are made of carbide for durability and accuracy. The tool comes in a sturdy plastic case for protection and storage.

• Range: 2 to 40 inches
• Accuracy: +/- 0.00005x3 + L/2 inches
• Graduation: 0.001 inches

Product Highlights

This micrometer set is ideal for measuring inner diameters of various components. The flexibility of using extension rods allows the user to achieve a wide range of measurements effectively.

Product Information

Standard Information

• Brand: Mitutoyo
• Case: Plastic Case

Technical Specifications

• Range: 2 to 40 inches
• Accuracy: +/- 0.00012 + n + (0.00004xR / 2)
• Graduation/Resolution: 0.001 inches
• Measuring Face Material: Carbide Tip
• Type: Imperial Extension Rod
• Series: 137
• Material: Carbide Tip
