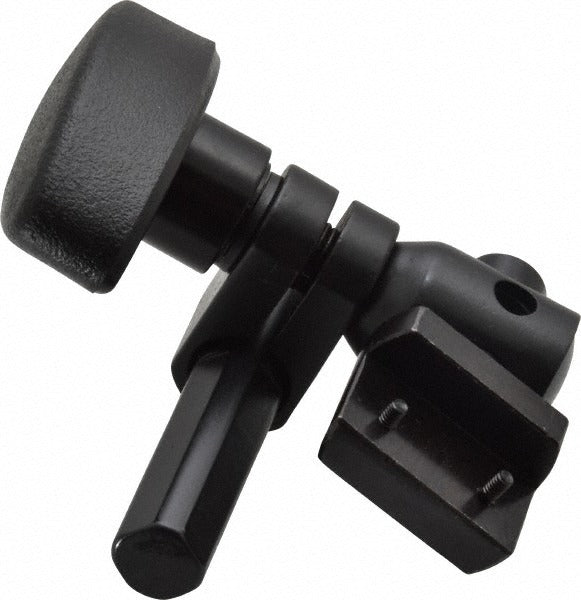

Mitutoyo 12AAA222 Height Gage Adapter SJ-301 SJ-210

Product Description

The MITUTOYO 12AAA222 is a height gage adapter designed for use with Surftest portable surface roughness testers. This accessory mounts directly to compatible Mitutoyo instruments and allows the tester to be positioned and stabilized on a height gage stand, enabling consistent stylus placement during surface profile measurements. It is a purpose-built replacement and accessory part installed by metrology technicians, quality control personnel, and precision measurement professionals in manufacturing and inspection environments. The adapter measures 9.00 millimeters in overall length and 9.00 millimeters in overall depth, making it a compact interface component suited for benchtop and field inspection setups.

This adapter is intended for use in dimensional inspection and surface finish measurement applications where a height gage is used as a positioning reference. It supports precise, repeatable stylus traversal across flat, machined, or finished workpiece surfaces. Typical installation scenarios include quality lab benches, machine shop inspection stations, and in-process measurement setups where the SJ-301 or SJ-210 tester must be held at a fixed, controlled elevation above the workpiece.

Key Features

• Designed specifically as a height gage adapter for Surftest portable surface roughness testers
• Compact form factor at 9.00 millimeters overall length and 9.00 millimeters overall depth
• Compatible with Mitutoyo SJ-301 and SJ-210 surface roughness testers
• OEM accessory ensuring proper mechanical fit and stylus alignment
• Sold individually as a single unit

Compatibility

The MITUTOYO 12AAA222 is compatible with the Mitutoyo SJ-301 and SJ-210 Surftest portable surface roughness testers as stated by the manufacturer.

Installation Notes

Installation is performed by metrology technicians or quality control personnel familiar with Mitutoyo Surftest instruments. Before attaching or removing this adapter, power down the surface roughness tester and ensure the stylus is protected to avoid damage. Verify mechanical fit and secure attachment before performing any measurement traversal. Consult the applicable instrument manual for mounting orientation and adapter seating guidance specific to the SJ-301 or SJ-210.
